Tamper-Resistant
Tamper -Resistant designed cover full line of the outlets,with a variety of duplex, Decorator, and specification-grade receptacles in commercial versions and in residential versions as well .
Every year more than 2,000 children in the U.S. under the age of 10 were treated in emergency rooms for injuries related to electrical receptacles approximately seven children per day. * In most of these cases:
The victims were younger than four years old and suffered first or second-degree burns.
Children were injured when sticking common objects such as hairpins or keys into receptacles.
The injuries occurred at home.
Weather-Resistant
Automatic shutter system prevents yong children from inserting unwanted objects into the outlets. Cotructed with advanced UV stabilized engineering to provide superoir corrision, temperature, and UV resistance, preventing from discoloration and aging, ideal for outdoor use.
*Please Well Noted Weather-Resistant Receptacle can not instead of Water-proof Outlet.
The NECO requires that Weather -Resistant Receptacles be installed in wet or damp locations such as porches, decks, and other outdoor locations where challenging conditions can cause premature failure due to cracked covers and corrosion. All Weather-Resistant Receptacles must meet stringent UL listing requirements Ultraviolet light exposure, Cold impact, Accelerated aging,
Proper materials for current carrying parts, wire binding screws, and mounting straps to ensure superior corrosion resistance.
Installation & Wiring
Works with #12 AWG for 20Amp Receptacle while #14 AWG for 15Amp Receptacle.The outlet accept side wire and back wire. All the screws have been loosened and easy of installation, people no need to loosen the screws before wiring. We provide regular wall plate as well. Replace an existing outlet in as short as 10 minutes.
Decorator Duplex Outlets
Photo |
Model |
Description |
Rating(A V) |
Wiring Type |
Function |

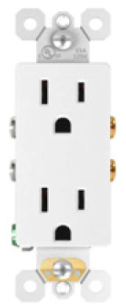

D15 |
15A 125V AC Decorator Receptacles |
15A 125V |
Side Wire/ Back Wire |
Standard |
|
D15Q |
15A 125V AC Decorator Receptacles |
15A 125V |
Side Wire/ Push-In Quick Wire |
Standard |
|

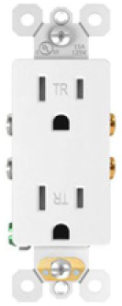

DT15 |
15A 125V AC Decorator Receptacles Tamper-Resistant |
15A 125V |
Side Wire/ Back Wire |
TR |
|
DT15Q |
15A 125V AC Decorator Receptacles Tamper-Resistant |
15A 125V |
Side Wire/ Push-In Quick Wire |
TR |
*Mark:
Full Line of wiring Devices Self-Grounding.
Push-In Quick wire accepts #14 AWG solid copper wire on1y.
Side and back wire accepts #12- #14 AWG solid.
Push-In Quick wire for 15Amp Outlet only.
Tamper resistant and weather resistant meets NEC requirements .
