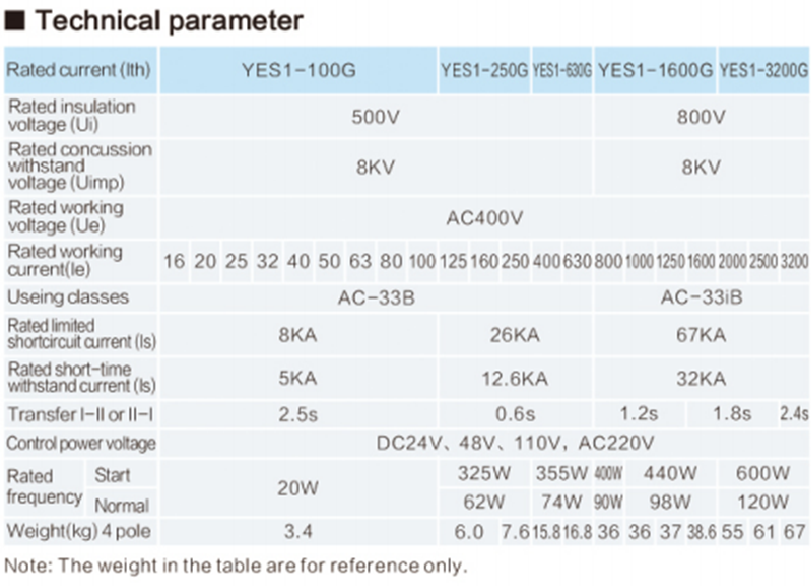

G Type Automatic Transfer Switch Three Positions
Model |
YES1-G |
|||||
Rated current (Ith) |
100 |
250 |
630 |
1600 |
3200 |
|
Rated working current(Ie) |
16,20,25,32,40,50,63,80,100 |
125,160,200,225,250 |
315,350,400,500,630 |
800,1000,1250,1600 |
2000,2500, 3200 |
|
Rated insulation voltage (Ui) |
690V |
800V |
||||
Rated concussion withstand voltage (Uimp) |
8KV |
|||||
Rated working voltage (Ue) |
AC400V |
|||||
Useing classes |
AC-33B |
AC-33iB |
||||
Rated limited shortcircuit current (Is) |
8KA |
17KA |
26KA |
67.5KA |
||
Rated short-time withstand current (Is) |
5kA/30ms |
10kA/60ms |
12.6kA/60ms |
32kA/60ms |
||
Transfer I-II or II-I |
2.5s |
0.6s |
|
1.2s |
2.4s |
|
Control power voltage | Start |
20W |
325W |
355W |
440W |
600W |
Rated frequency | Normal |
62W |
74W |
98W |
120W |
