Cylinder Series

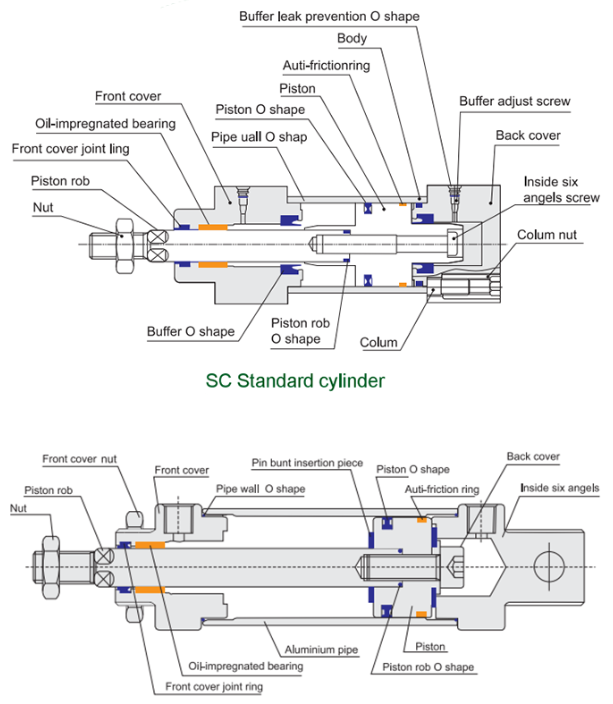

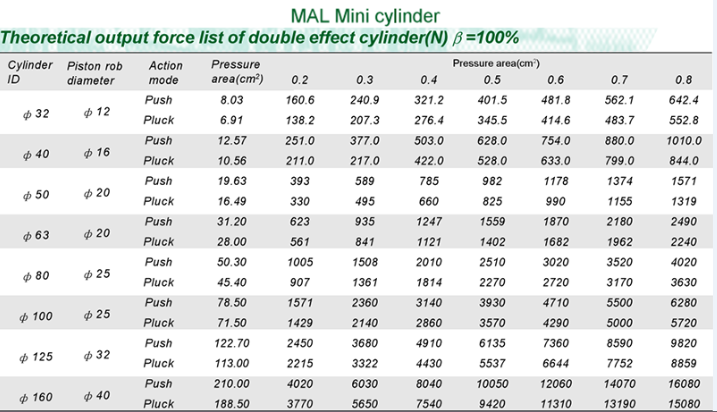

Selection of cylinder ID

Propulsive force on piston rob of cylinder: F=π/4xD2xPx β(N)

Pulling force on piston rob of cylinder: Fz=π/4X (D2-d2)Px β(N)

D: ID of cylinder tube(diameter of piston) d:Diameter of piston rob

P: Air source pressure β :Load force(s/ow β =65%，fast β =80%)

Points for installation and usage of cylinder

Pre-running the cylinder under idle load condition before installation, install it after everything is OK. Select the installation method according to usage condition, pay attention to the following points:

a:The force will be applied on one surface when mounting the tongue and middle axle pin.

b:The applied force will be on one axis with the supporting center when mounting flange, make the flange bear the effect instead of its fixing bolt when the flange is connected with the supporting base.

c:The cylinder piston rob is not allowed to bear inclined load or lateral load, cylinder with overlength travel will add support or guiding device, empty the pipe before connection to avoid dirt enter into the pipe.

Check the fastener regularly to avoid loosening happens.

If it is necessary, adjust the throttle valve to regular the buffer effect and avoid the piston to strike with the cylinder tap to damage the parts.

Aluminium Alloy Mini Cylinder

It adopts screw-in or direct rolling connection structure, light and small with handsome shape. It uses new seal material with good resistance to abrasion and long service life.

Slim model cylinder

It is in small axial size and occupies less space, with light structure and handsome shape. It can bear large transverse load and be installed directly on all kinds of fixture and special machinery.
