DT series copper and aluminum terminal

DT series copper and aluminum terminal Featured Image
  • DT series copper and aluminum terminal
  • DT series copper and aluminum terminal

DT series copper and aluminum terminal

Short Description:

The terminal is suitable for connecting electric wires, power cables and electrical equipment in

distribution devices. DL series aluminum terminal is pressed with (L3) aluminum rod, DT series

copper terminal is pressed with (T2) copper rod


Download as PDF

Product Detail

Product Tags

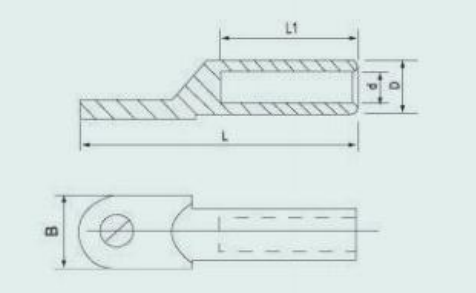

Size

Type φ D d L L1 B
DT-10 8.5 9 5.3 62 28 16
DT-16 8.5 10 6.5 68 30 16
DT-25 8.5 11 7 70 33 18
DT-35 10.5 12 8.5 80 36 20.5
DT-50 10.5 14 9.5 85 38 23
DT-70 12.5 16 11.5 95 43 26
DT-95 12.5 18 13.5 104 46 28
DT-120 14.5 20 15 112 49 30
DT-150 14.5 22 16.5 120 51 34
DT-185 16.5 25 18.5 125 55 37
DT-240 16.5 27 21 136 60 40
DT-300 18 31 23 155 66 50
DT-400 21 34 26.5 170 75 50
DT-500 21 38 29 190 75 60
DT-630 21 45 35 220 85 80
