Applications

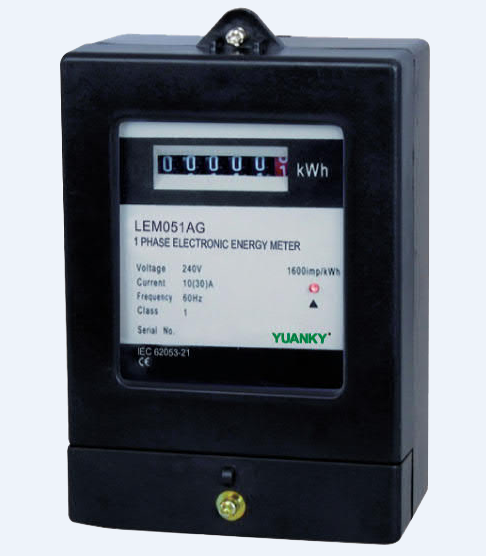

The HWM051 series are front panel mounted single phase electronic active energy meters.

They adopt many advanced technologies of research and development, like microelectronic-

techniques, specialized large-scale IC (integrated circuit). digital sampling and processing technology, SMT technique, and so on. Their technical perlormances completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter. They can directly and accurately measure the load active energy consumption in the single phase AC networks of rated frequency 50Hz or 60H2 and used indoors or in the meter box outdoors. The HVM051 series have multiple configurations for option, to be suitable with the various market demands. They have features with excellent long-term relability, small volume, light weight, perfect appearance, easy installation, etc.

Functions and features

Front panel mounted in 3 points for fixing, the appearance and dimensions are in accordance with Standards BS 7856 and DIN 43857.

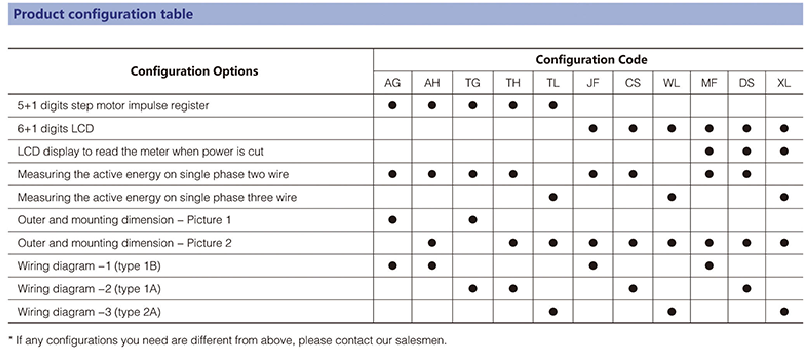

Can select the step motor impulse register of 5+1 digits (9999.1kWh) or 6+1 digits (999999. 1kWh) LCD display.

Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.

Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.

LEDs indicate the power state (green) and the energy impulse signal (red).

Automatic detection for the load current flow direction and will be indicated by LED.

Measure the active energy consumption in one direction on single phase two wire or single phase three wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053–21.

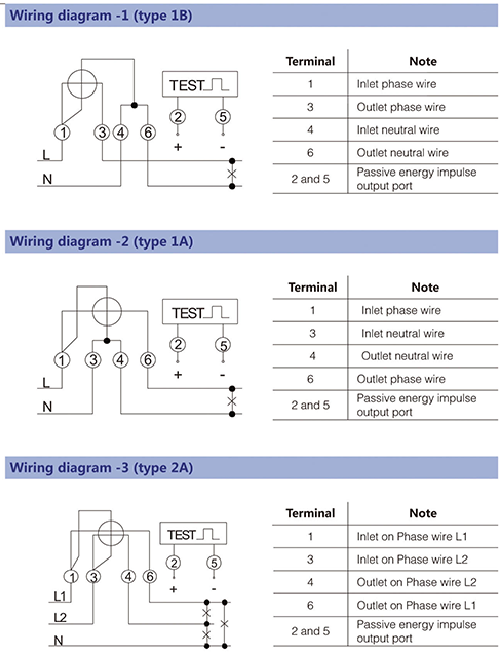

Direct connection. For single phase two wire, two types of connections: type 1A and type 1B for option. For single phase three wire, the connection is type 2A.

Can select the extended terminal cover or short terminal cover.

Technical parameters

If any reference voltage and current you need are different from above, ptease contact our salesmen.

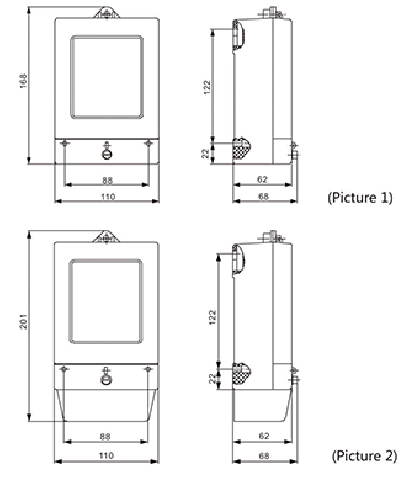

Outer and mounting dimension

HWM051AG/TG
