Scope of application
Explain: The Modular Signal Lamp is applicable to circuit with rated voltage 230V~and frequency50/60Hz for visual indication and signaling, is mainly used to indicate the status of a(sub ) part of the installation, heater, motor, fan and pump etc.
Feature
■Low service duration, minimum power consumption;
■Compact design in modular size, easy installation;
■Rated voltage:230VAC,50/60Hz;
■Colour. red, green, yellow, blue;
■Connection terminal: Pillar terminal with clamp;
■Connection capacity: Rigid conductor 10mm2;
■Installation: On symmetrical DIN rail, Panel mounting;
■llumination type: llumination: LED, Max power:0.6W;
■Service duration:30,000 hours, llumination: Neon bulb, Max power:1.2W, Service duration:15,000 hours.
Selecting and order data
|

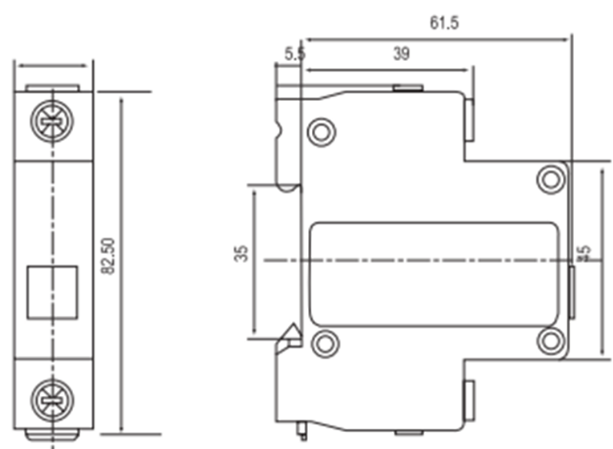

Overall and installation dimension |
Standard |
Confirming to IEC60947-5-1 |
|
Electric ratings |
Up to 230VAC 50/60HZ |
|
|
Rated insulation Voltage |
500V |
|
|
Protection grade |
IP20 |
|
|
Rated operation current |
20mA |
|
|
Life |
Incandescence lamp ≥1000h |
|
|
Neon lamp ≥2000h |
||
|
-5C+40C,average temperature in 24hours not exceed+35℃ |
||
|
Alient temperature |
Not exceed 2000m |
|
|
Mounting category |
Ⅱ |
