An easily fitted Socket incorporating a Residual Current Device,give much greater safetyin the
use of electrical appliances against a rick of electrocution.
HWPR plastic type can be fitted to a standard box with minimum depth of 25mm.

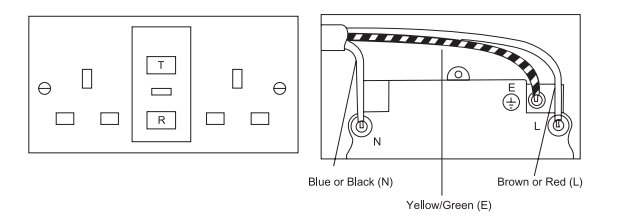

HWMR metel type when installing an earth link must be wired to the earth terminal in the box
by using side knockouts.
Press green reser(R)button and window indicator turns red
Press white test(T)button and window indicator turns black means the RCD has tripped successfully.
Designed and menufactured in accordance with the relevant clauses of BS1363 plugs fittend with
a BS1362 fuse only.
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS
RCD contact breaker:Double pole
Cable capacity:6mm
