An easily fitted Socket incorporating a Residual Current Device,give much greater safety in the
use of electrical appliances against a rick of electrocution.

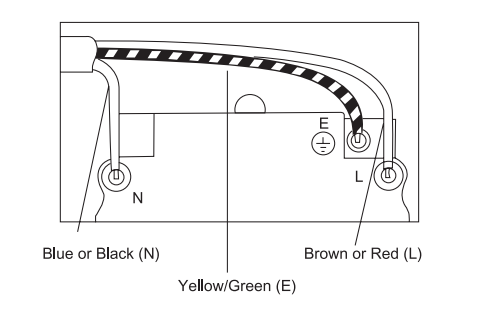

HWSP plastic type can be fitted to a standard box with minimum depth of 25mm.
Designed to be usd in the fied position only and not mounted outdoors. Press green reset (R)button
the indicator flag turns red and indicator light turns on.
Press white/yellow test(T)button the indicator flag turns black and indicator light turns off means
the RCD has tripped successfully
Designed and manufactured in accordance with the relevant clauses of BS7288,and used with
BS1363 plugs fitted with a BS1362 fuse only.
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40ms
RCD contact breaker:Double pole
Cable capacity:6mm
