Load switch 400A 630A 50Hz interlock load breaker switch with striker fuse

Short Description:

FN7-12DR type AC high voltage load breaker switch( below called as LBS) is a new type indoor high voltage LBS, suitable for AC power system with 3-phase AC 50HZ, rated voltage 12KV,act as break of loading current and close for short circuit current.FN7-12 type is based on the FN12,added the side operation actuator, to make the installation more simple and convenient, and meet different requirements of the order needs.

Send email to us Download as PDF

Product Detail

Product Tags

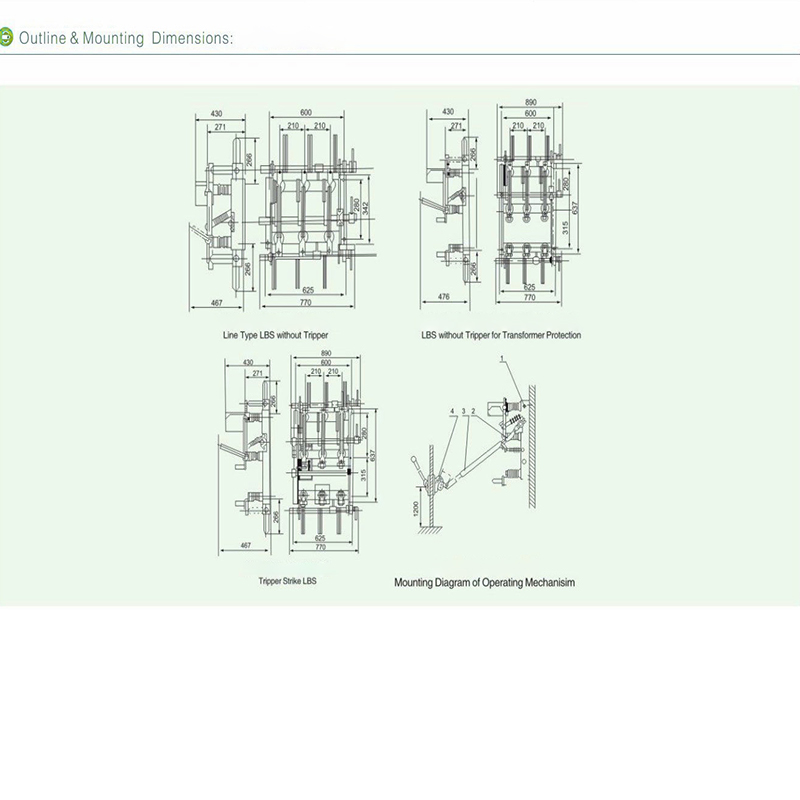

Main Technical Parameters

Main Specitications

Description		Model	DS	DS	L	R	RA	F	Application
Description		Model	At incoming side	At outgoing side	interlock	fuse	Fuse with striker	Elec.OFF Equip	Application
LBS	Without striker fuse	FN7-12	-	-	-	-	-	-	line
		FN7-12DSL	△	-	△	-	-	-
		FN7-12DXL	-	△	△
		FN7-12R	-	-	-	△	-	-	transformer
		FN7-12DSLR	△	-	△	△	-	-
		FN7-12DXLR	-	△	△	△	-	-
	With striker fuse	FN7-12RAF	-	-	-	-	△	△	transformer
		FN7-12DSLRAF	△	-	△	-	△	△
		FN7-12DXLRAF	-	△	△	-	△	△

Rated Parameters(KV)

Rated Voltage(KV)		12
Isulation level	Power Frequency Volt withstand(1 Min)	Phase to phase/phase to earth 42	Phase to phase/phase to earth 48
	Lightening Impulse Volt withstand	Phase to phase/phase to earth 75	Phase to phase/phase to earth 85
Rated Current		400	630
Thermal Stable Current		12.5	20
Dynamic Stable Current		31.5	50
Short Circuit Breaking Current		31.5	50
