Standard Certifications | IEC60947-2 | ||||||||||||||||||||||||
ltem No. | HWM7-125H | ||||||||||||||||||||||||
Number of poles | 1,2,3,4 | ||||||||||||||||||||||||
Electrical characteristics as per IEC60947-2 and EN60947-2 | |||||||||||||||||||||||||
Rated current,In | 16-20-25-32-40-50-63-80-100-125 | ||||||||||||||||||||||||
Rated Operating Voltage,Ue | 230V~(1P);400V~(2P,3P,4P) | ||||||||||||||||||||||||
Rated Insulated Voltage(Ui) | AC:800V | ||||||||||||||||||||||||
Rated impulse withstand voltage,Uimp) | 8kV | ||||||||||||||||||||||||
Pole | 1P | 2P,3P,4P | |||||||||||||||||||||||
Ultimate breaking capacity (kA rms Icu) |
220/230V | 15KA | 一 | ||||||||||||||||||||||
400V | 一 | 15KA | |||||||||||||||||||||||
Rated service breaking capacity (kA rms Ics) |
220/230V | 10KA | 一 | ||||||||||||||||||||||
400V | 一 | 10KA | |||||||||||||||||||||||
Protection function | Overload,Short-circuit | ||||||||||||||||||||||||
Type of trip unit | Thermal-Magnetic | ||||||||||||||||||||||||
Magnetic trip range | 400A | ||||||||||||||||||||||||
Utilization category | A | ||||||||||||||||||||||||
Endurance | Mechanical | 10000 operations | |||||||||||||||||||||||
Electrical | 4000 operations | ||||||||||||||||||||||||
Connection | Standard | Front connection | |||||||||||||||||||||||
Mounting Standard | Screw fixing | ||||||||||||||||||||||||

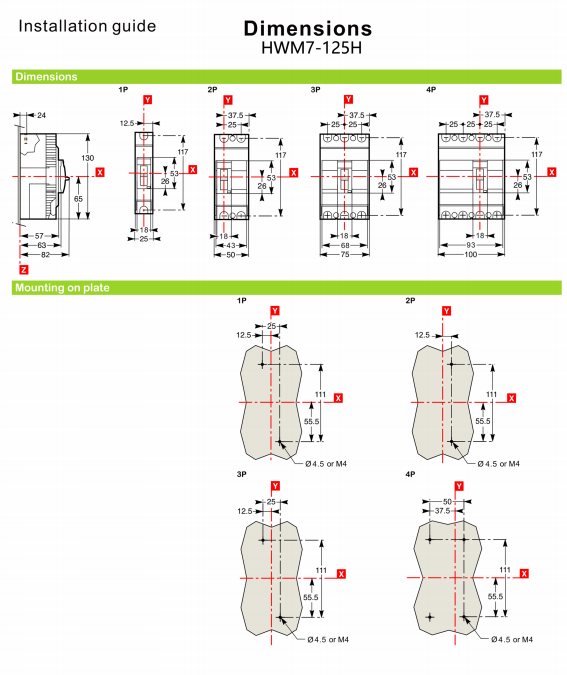

Dimensions(mm) | Pole | ||||||||||||||||||||||||
1 | 130X25X82 | ||||||||||||||||||||||||
2 | 130X50X82 | ||||||||||||||||||||||||
3 | 130X75X82 | ||||||||||||||||||||||||
4 | 130X100X82 |
