MG Series Distribution Box

Short Description:

Ergonomics And Accessibility
Ease Of Implementation
Disbo MG architecture ensures extremely simple installation and ocnnection for the installer;
Central hole in the box make easier the installation in the wall;
Enough space is provided to give good visibility and make cable insertion easy and effective;
Neutral bar is available in both sides;
Enclosure is designed for convenient and fast wall possibilties for cable inlet and easy knock-out;
Clear labels make easier identification of outgoing circuit breakers, earth and neutral.


Product Detail

Product Tags

Ease Of Implementation

Define your enclosure size type according to your needs of ways and incomers.



Number of ways MCB 125A MCCB 125A MCCB 250A
12 B B -
18 B C C
24 B C C
30 C D D
36 C D D
42 C D D
48 D E E
48 D E E

Flush



Size type H h L
B 570 530 440
C 730 690 440
D 890 850 440
E 1040 1000 440

Surface

Size type H h L
B 545 530 410
C 705 690 410
D 865 850 410
E 1015 1000 410

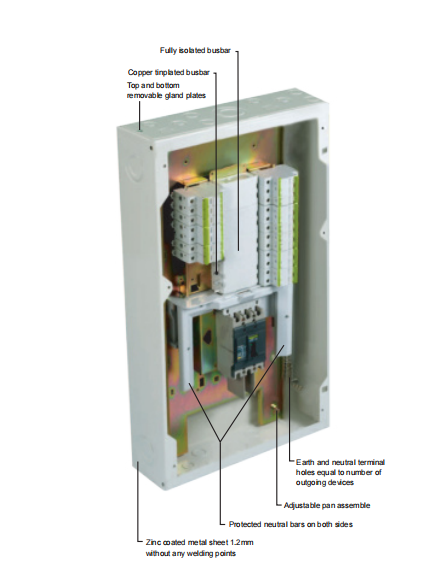

3ebfcf30bfeb7b5fc26c608c2ffb479
