Pluggable Single-Pole SPD BY1-12.5-XXX/1S+1

Pluggable Single-Pole SPD BY1-12.5-XXX/1S+1 Featured Image
  • Pluggable Single-Pole SPD BY1-12.5-XXX/1S+1

Pluggable Single-Pole SPD BY1-12.5-XXX/1S+1

Short Description:


















  • Location of Use:: Main Distribution Boards
  • Network Systems:: YY,TN-S
  • Mode of Protection:: LN,N-PE
  • Surge Ratings:: limp=2.5KA(10/350μs) In= 20 kA(8/20μs)
  • IEC/EN Category:: Class I+ll/Type 1+2/Type 1CA
  • Protective Elements:: High Energy MOV and GDT
  • Housing: : Pluggable Design
  • Compliance: : IEC61643-11:2011 EN 61643-11:2012 UL 1449 4th Edition
    • Download as PDF

    Product Detail

    Product Tags

    Technical Data

    IEC Electrical

    NominalAC Volage(50/60Hz)   60V 120V 230V 230V
    Maximum Continuous Operating Voltage(AC) (L-N) Uc 75V 150V 275V 320V
    (N-PE) Uc 255V 255V 255V 255V
    Nomina Discharge Current(8/20μs) (L-N)/(N-PE) In 20 kA/25KA
    Maximum Discharge Current(8/20μs) (L-N)/(N-PE) lmax 50kA/50KA
    Impulse Discharge Current(10/350 μs) (L-N)/(N-PE) limp 12.5 kA/25KA
    Specific Energy (L-N)/(N-PE) W/R 39kJ/Ω /625KJ/Ω
    Charge (L-N)/(N-PE) Q 6As/12.5As
    Voltage Protection Level (L-N)/(N-PE) Up 700V/1500V 1000V/1500V 1500 V/1500V 1600V/1500V/
    Follow Current Interruptt Rating (N-PE) I 100A RMS
    Response Time (L-N)/(N-PE) tA <25 ns/<100ns
    Back-Up Fuse(max)     315A/250A gG
    Short-Circuit Current Rating(AC) (L-N) lscCR 25kA/50 kA
    TOV Withstand 5s (L-N) UT 114V 180V 335V 335V
    TOV 120min (L-N) UT 114V 230V 440V 440V
      Mode Withstand Safe Fail Safe Fail Safe Fail
    TOV Withstand 200s (N-PE) UT 1200V
    Number of Ports     1

    UL Electrical

    Maximum Continuous Operating Voltage(AC (L-N)/(N-PE) MCOV 75V/255V 150V/255V 275V/255V 320V/255V
    Voltage Protection Rating (L-N)/(N-PE) VPR 330V/1200V 600V/1200V 900V/1200V 1200V/1200V
    Nominal Discharge Current(8/20μs) (L-N)/(-PE) In 20KA/20KA 20KA/20KA 20KA/20KA 20KA/20KA
    Short-Circuit Current Rating(AC) (L-N) SCCR 200KA 150KA 150KA 150KA

    Mechanical &Environmental

    Operating Temperature Range Ta -40 F to+158F[-40℃ to+70℃I
    Permissible Operating Humidity RH 5%…95%
    Atmospheric pressure and altitude   80k Pa...106k    Pa/-500m...2000m
    Terminal Screw Torque Mmax 39.9Ibf-in [4.5 Nm]
    Conductor Cross Section(max)   2AWG (Solid,Stranded)/4AWG(Flexible)
      35mm²(Solid,Stranded)/25 mm²(Flexible)
    Mounting   35 mm DIN Rail.EN 60715
    Degree of Protection   IP 20(built-in)
    Housing Material   Thermoplastic:Extinguishing Degree UL94V-0
    Thermal Protection   Yes
    Operating State/Fault Indication   Green ok/Red defect
    Remote Contacts(RC)   Optional
    RC Switching Capacity   AC:250V /0.5 ABC:250V/0.1 A:125V/0.2 A;75V/0.5A
    RC Conductor Cross Section(max)   16AWG(Solid)/1.5mm²(Sold)

    Order Information

    Order    Code 75 150 275 320
    BY1-12.5-XXX/1+1 1207513 1215013 1227513 1232013
    BY1-12.5-XXX/1S+1(with remote contacts) 1207514 1215014 1227514 1232014
    BY1-12.5-XXX/0(spare modules) 1207501 1215001 1227501 1232001
    BY1-12.5-NPE/0(spare modules) 1205501 1255001 1225501 1225501

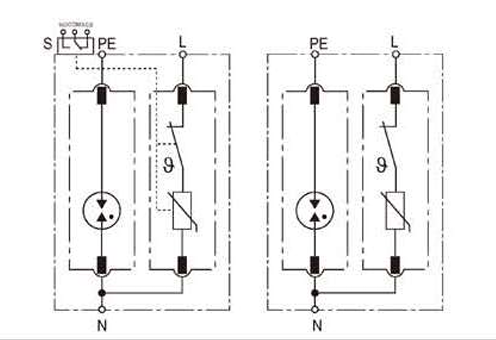

    Internal Configuration

    Legend

    L    Line

    N    Neutral

    PE   Protective Earth

    S     Signalling Contacts Optional

    12

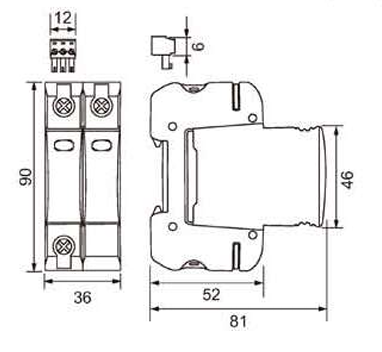

    Dimensions &Packaging

    13
    BY1-12.5-XXX/1(S)+1 150 275 320 385
    Single Unit DIN 43880 Dimension 1 CTN
    Packaging Dimensions(H×W×L) [200×230×330mm]
    Minimum Order Quantity 32 Units
    14

    Connection Diagram

    BY1-12.5-XXX/0 150 275 320 385
    BY1-12.5-NPE/0 25
    Single Unit DIN 43880 Dimension 1 CTN
    Packaging Dimensions(H×W×L) [200×230×330mm]
    Minimum Order Quantity 64 Units
    15
    16
