Pluggable Single-Pole SPD BY1-12.5-XXX/1S

Pluggable Single-Pole SPD BY1-12.5-XXX/1S Featured Image
  • Pluggable Single-Pole SPD BY1-12.5-XXX/1S

Pluggable Single-Pole SPD BY1-12.5-XXX/1S

Short Description:


















  • Location of Use:: Main Distribution Boards
  • Network Systems:: TN-S,TB-C,TT(only L-N)
  • Mode of Protection:: L-PE,N-PE(only TN-S),L-PEN,L-N
  • Surge Ratings:: limp=up to 12.5KA(10/350μs) In=up to 20 kA(8/20μs)
  • IEC/EN Category:: Class I+ll/Type 1+2
  • Protective Elements:: High Energy MOV and GDT
  • Housing: : Pluggable Design
  • Compliance: : IEC61643-11:2011 EN 61643-11:2012 UL 1449 4th Edition
    • Download as PDF

    Product Detail

    Product Tags

    Technical Data

    IEC Electrical

    NominalAC Voltage(50/60Hz) UO/Un 60V 120V 230V 230V 230V 440V
    Maximum Continuous Operating Voltage(AC) Uc 75V 150V 275V 320V 385V 440V
    Nominal Discharge Current(8/20μs) In 20KA 20KA 20KA 20KA 10KA 10KA
    Maximum Discharge Current(8/20μs) Imax 50KA 50KA 50KA 50KA 50KA 50KA
    Impulse Discharge Current(10/350μs) Iimp 12.5KA 12.5KA 12.5KA 12.5KA 10KA 10KA
    Specific Energy W/R 39kJ/Ω 39kJ/Ω 39kJ/Ω 39kJ/Ω 25kJ/Ω 25kJ/Ω
    Charge Q 6.25As 6.25As 6.25As 6.25As 5As 5As
    Voltage Protection Level Up 700V 1000V 1500V 1600V 1800V 2000V
    Response Time tA <25ns
    Back-Up Fuse(max) 315A/250A gG
    Short-Circuit Current Rating(AC) ISCCR 25KA/50KA
    TOV Withstand 5s UT 114V 180V 335V 335V 335V 580V
    TOV 120min UT 180V 230V 440V 440V 440V 765V
    Mode Withstand Safe Fail Safe Fail Safe Fail Safe Fail Safe Fail
    Number of Ports 1

    UL Electrical

    Maximum Continuous Operating Voltage(AC MCOV 75V 150V 275V 320V 385V 440V
    Voltage Protection Rating VPR 330V 600V 900V 1200V 1350V 1500V
    Nominal Discharge Current(8/20μs) I 20KA 20KA 20KA 20KA 20KA 20KA
    Short-Circuit Current Rating(AC) SCCR 100KA 200KA 150KA 150KA 150KA 200KA

    Mechanical &Environmental

    Operating Temperature Range Ta -40 F to+158F[-40℃ to+70℃I
    Permissible Operating Humidity RH 5%…95%
    Atmospheric pressure and altitude 80k Pa...106k    Pa/-500m...2000m
    Terminal Screw Torque Mmax 39.9Ibf-in [4.5 Nm]
    Conductor Cross Section(max) 2AWG (Solid,Stranded)/4AWG(Flexible)
    35mm²(Solid,Stranded)/25 mm²(Flexible)
    Mounting 35 mm DIN Rail.EN 60715
    Degree of Protection IP 20(built-in)
    Housing Material Thermoplastic:Extinguishing Degree UL94V-0
    Thermal Protection Yes
    Operating State/Fault Indication Green ok/Red defect
    Remote Contacts(RC) Optional
    RC Switching Capacity AC:250V /0.5 ABC:250V/0.1 A:125V/0.2 A;75V/0.5A
    RC Conductor Cross Section(max) 16AWG(Solid)/1.5mm²Sold)

    Order Information

    Order    Code 75 150 275 320 385
    BY1-12.5-XXX/1 1207511 1215011 1227511 1232011 1238511
    BY1-12.5-XXX/1S(with remote contacts) 1207512 1215012 1227512 1232012 1238512
    BY1-12.5-XXX/0(spare modules) 1207501 1215001 1227501 1232001 1238501

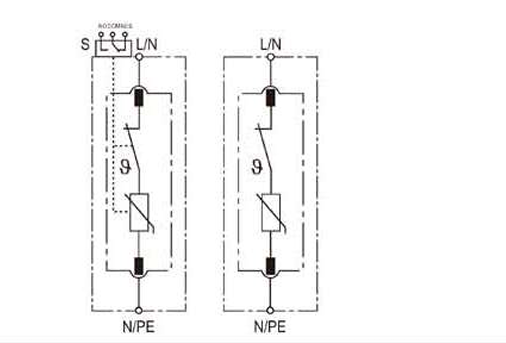

    Internal Configuration

    Legend

    L    Line

    N    Neutral

    PE   Protective Earth

    S     Signalling Contacts Optional

    11

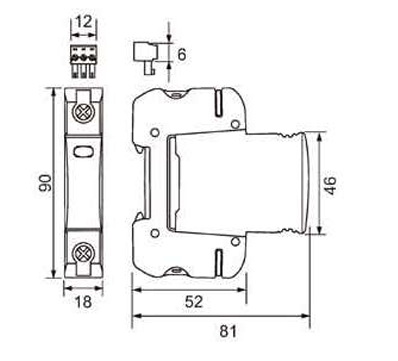

    Dimensions &Packaging

    12
    15
    BY1-12.5-XXX/1(S)

    75

    150

    275

    320

    385

    440
    Single Unit DIN 43880 Dimension

    1 CTN
    Packaging Dimensions(H×W×L)

    [200×230×330mm]
    Minimum Order Quantity

    64 Units

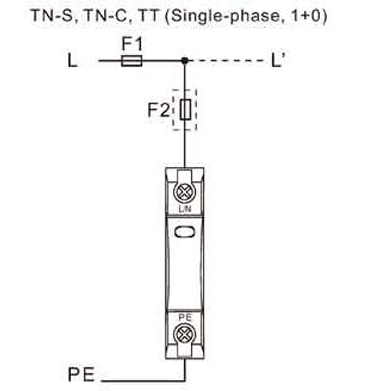

    Connection Diagram

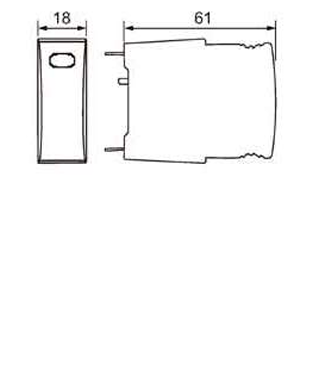

    BY1-12.5-XXX/0

    75

    150

    275

    320

    385

    440
    Single Unit DIN 43880 Dimension

    1 CTN
    Packaging Dimensions(H×W×L)

    [200×230×330mm]
    Minimum Order Quantity

    64 Units







    14
    13
