Specifications
Model | Type | Rated
current (A) |
Motor control
capacity (HP) |
Electrical
life (times) |
Mechanical
life (times) |
Frequency
of operation (per hr) |
Applica -tions | Position of lever |
QS5-15A | I-O | 15 | 5.5 |
100000 |
250000 |
200 |
ON-OFF switching | 0-60 |
QS5-30A | 30 | 10 | ||||||
QS5-15N | I-O- Ⅰ | 15 | 5.5 | Forward &
reverse |
60-0-60 | |||
QS5-30N | 30 | 10 | ||||||
QS5-15P/3 | I-O- Ⅱ | 15 | 5.5 | for 3 pole two circuits | 60-0-60 | |||
QS5-30P/3 | 30 | 10 | ||||||
QS5-63A | I-O | 63 | 22 |
80000 |
200000 |
180 |
ON-OFF switching | 0-60 |
QS5-100A | 100 | 30 | ||||||
QS5-63N | I-O- Ⅰ | 63 | 22 | Forward &
reverse |
60-0-60 | |||
QS5-100N | 100 | 30 | ||||||

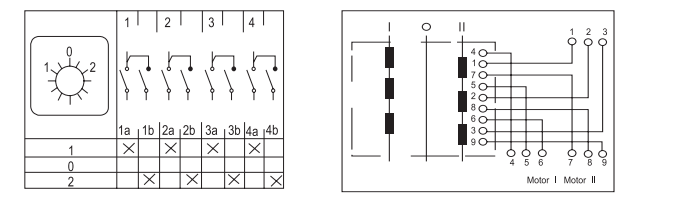

QS5-63P/4 | I-O- Ⅱ | 63 | 22 | for 3 pole two circuits | 60-0-60 | |||
QS5-100P/4 | 100 | 30 |
