RCD Protected Safety Wall Switch Socket UK 13A 30ma 13A MAX Standard Grounding
Advantage:
● An easily fitted socket incorporating a Residual Current Device, give much greater safety in the use of electrical appliances against a risk of electrocution.
● 0230SPW plastic and UK type can be fitted to a standard box with mininum depth of 25th

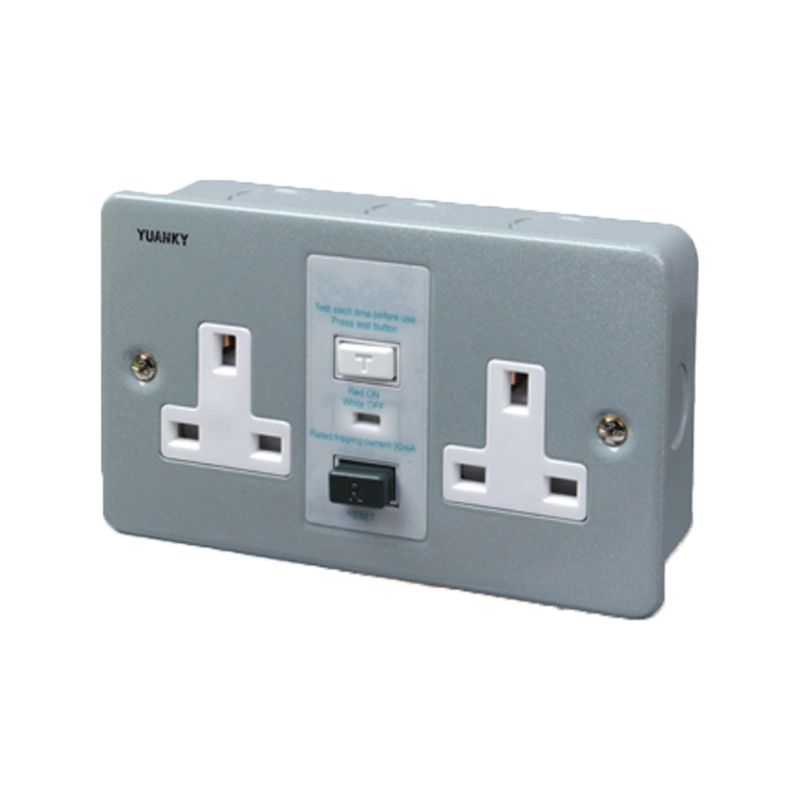

● 0230SMG metal type when installing an earth link must be wired to the earth terminal in the box by using side knockouts
● Press green reset (R) button and window indicators turns red
● Press blue test (T) button and window indicator turns black means the RCD has tripped successfully
● Designed and munufactured in accordance with BS7288, and used with BS1363 plugs fitted with a BS1362 fuse only.
| Product name | 13A RCD Protected Safety Socket |

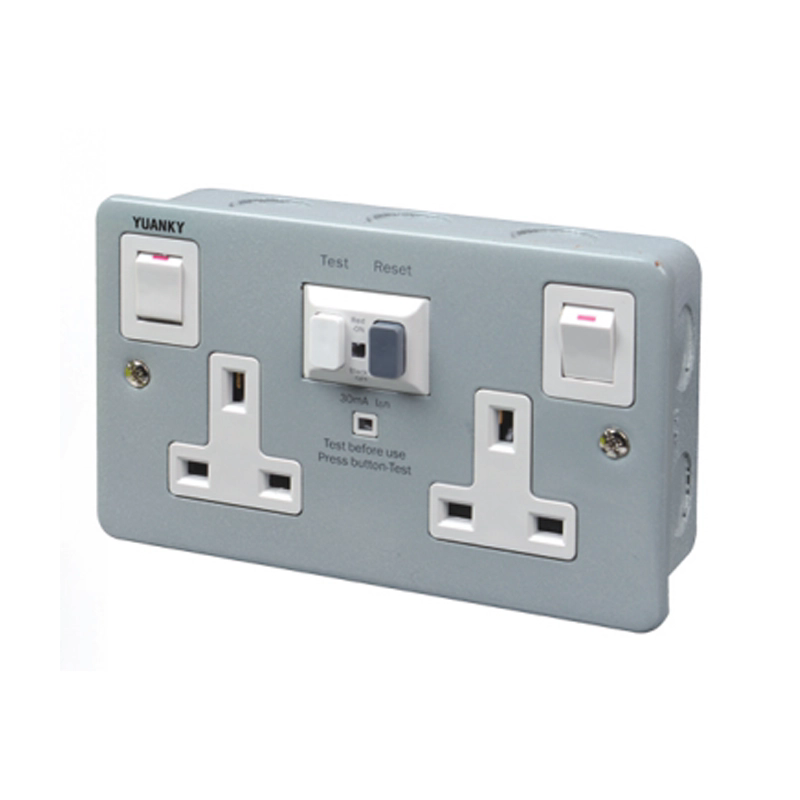

| Types | Single/Double Socket; With/No switched |
| Material | Plastic/Metal |
| Rated Voltage | 240VAC |
| Rated Current | 13A max |
| Frequency | 50Hz |
| Tripping Current | 10mA & 30mA |
| Tripping speed | 40mS max |
| RCD contact breaker | Double pole |
| Voltage Surge | 4K (100kHz Ring Wave) |
| Endurance | 3000 cycles min |
| Hit-pot | 2000V/1min |
| Approval | CE BS7288; BS1363 |
| Cable capacity | 3×2.5mm² |
| IP Rating | IP4X |
| Dimension | 146*86mm 86*86mm |
| Application | Equipment, Household appliances etc. |
