Electromagnetic Series 400 series electromagnetic

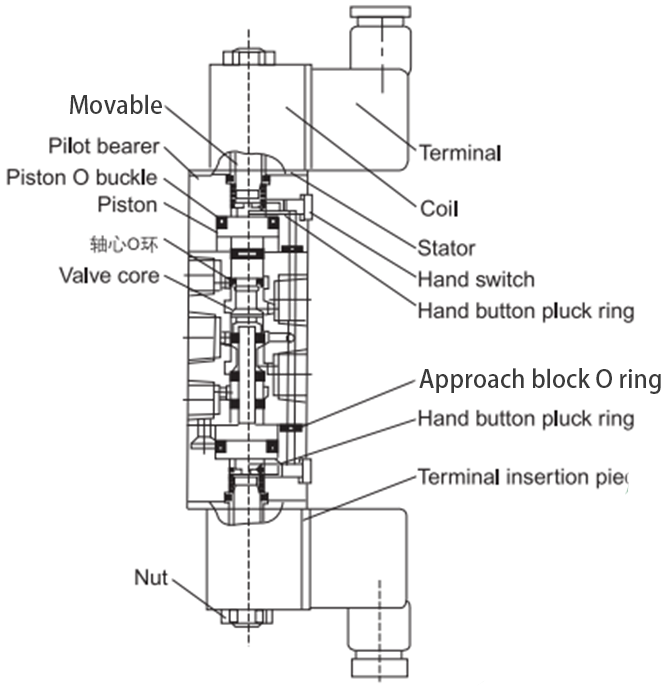

This series solenoid valve adopts integral slot throttle structure. The valve hole is processed with special high precision finishing technique. The product has good performance and good change over with long service life, handsome shape and large airflow. It is widely applied to pneumatic system.
Adapter bore: G1/8”~G1/2”
Working pressure: 0. 15~0.8MPa
Applicable temperature: -5~50 C
ltem |
4V410-15 4V420-15 4V430C- 154V430E- 154V430P-15 |
4A410-15 4A420-15 4A430C-15 4A430E- 154A430P-15 | |
Medium | Air(diameter 40mm filter net) |
Adapter diameter | Inlet=outlet=release |
Lubrication | Not needed |
Pressure applied | 1.7-7.0kg/cm2 (24~ 100psi) |
Max. pressure withstand | 10. 5kg/cm2 (150psi) |
Working temp | 5~50C (41~122°F) |
Voltage range | ±10% |
Power consumption | AC:4.5VA DC:3.0W |
Isolation property | F grade |
Protection | IP65(DIN40050) |
Wiring mean | Terminal |
Max. operation frequency | 3 times per second |
Min. excitation time | 0.05s |
