RCCB 1P+N Hwl Residual Current Circuit Breaker With Overcurrent Protection Rcbo Supplier

Short Description:


Product Detail

Product Tags

■Mode: electro-magnetic type
■Residual current characteristics: AC
■Pole No.: 4
■Rated making and breaking capacity: 630A
■Rated current(A): 63, 80, 100
■Rated voltage: AC 230/400V
■Rated frequency: 50/60Hz
■Rated residual operating current lAn(A):0.1,0.3, 0.5
■Rated conditional short-circuit current Inc: 6kA
■Rated conditional residual short-circuit Current lAc: 6kA
■Residual trippi ng curre nt ra nge: 0.5lAn-lAn
■Electro-mechanical endurance: 4000 cycles
■Connection capacity: Rigid conductor 35mm2
■Connection terminal:
□Pillar terminal with clamp
■Fastening torque: 2.5Nm
■Installation:
□On symmetrical DIN rail 35.5mm
□Panel mounting
■Protection class:IP20

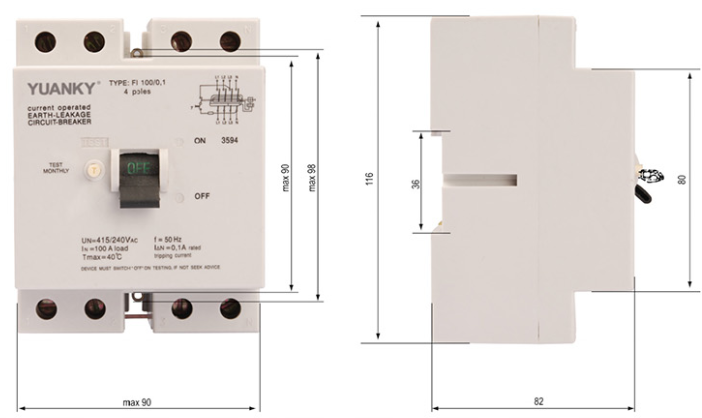

Overall & Installation Dimensions

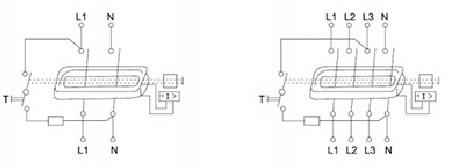

Wiring Diagram

Residual Current Action Breaking Time

type

In/A

I△n/A

Residual Current (1 △) Is Corresponding To The Following Breaking Time (S)

I△n

2I△n

5 IAn

5A.10A.20A.50A.100A.200A.500A

general type

any value

any value

0.3

0.15

0.04

0.04

Max Break-time

S type

<25

>0.03

0.5

0.2

0.15

0.15

Max Break-time

0.13

0.06

0.05

0.04

Min non-driving time

The general type RCBO whose current I△n is 0.03mA or less can use 0.25Ainstead of 51△ n.
