WQC、QCX5(MS-K) Magnetic Starter

Short Description:

The starter is the application of 50/60Hz AC voltage to 660V, current to 95A, The following
circuit as the control of three phase squirrel cage, to start, stop and reverse starting the
moter. Which is with the small volume, installation converience features. It has lost pressure
and overload protection performance.
The starter applied to the environment under normal use (without explosion-proof, anticorrosion). The products have many kind of with buttons, button-sealed circle and without
button, etc, It is apply to hot and humid area. Technical data: a model type loading products,
specifications, capacity control.


Product Detail

Product Tags

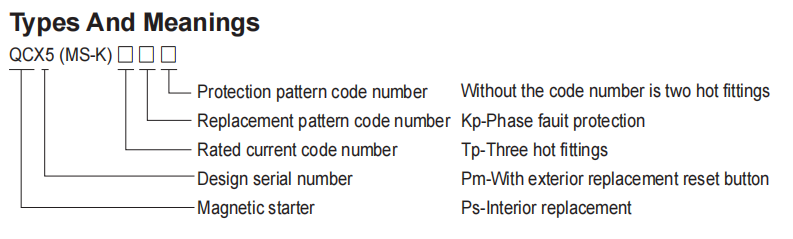

6eec82b994ad2d720bda51ec3568d9a

The Normal Working And Installment Conditions

·   Surrounding air temperatures: the surrounding ait temperature upper limit does not surpass+40节, the lower limit is not lower than-5节, The average temperature does not surpass+35节 in 24 hours;

·   Installation sites altitude above sea level does not surpass 2000m;

·   Atmospheric relative temperature does not surpass 50% when the surrounding air temperature are 40节 Can not have a higher relative humidity in a lower temperature, In the wettes month monthly average most low temperature is+25节, the monthly average maximum relative humidity is 90%, and consideration the dew on product surface;

·   Because of the temperature change;

· Installation sites environmental pollution can be 3 levels;

· Install category is III kind;

· Install condition: A.  Installment gtadient with vertical  not to surpass5. Installs in without remarkable vibration and impact place.





Main Technical Parameter

· Rated frequency 50Hz;

· Rated insulation voltage 660V;

· Rated working voltage 220V, 380V, 660V;

· Rated fixed woring voltage and the rated current of thermal relay and the maxmum power of controlled three phase AC motor.

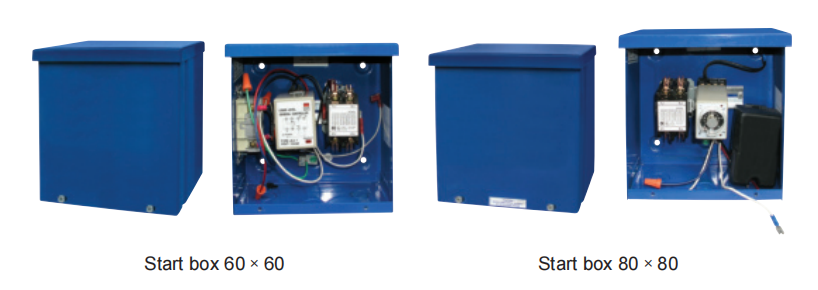

64f1e6357dd7232816b768f4903d1d8
