Pole | 3P |
Rated Current(A) | 125,225,400,630,800 |
Rated Voltage (V) | 240/415V~ |
Rated Frequency | 50Hz |

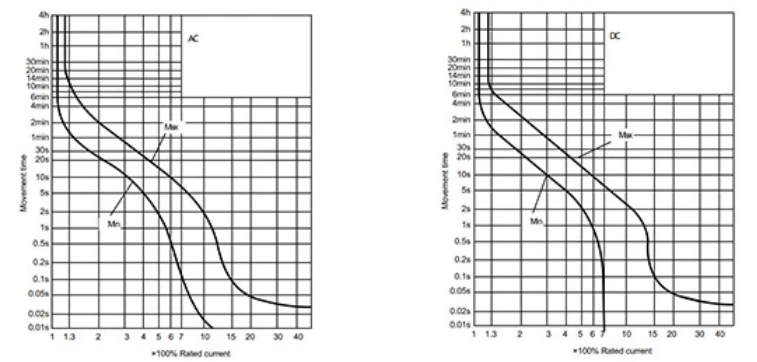

Tripping Curve | B, C |
Rated Short-circuit Capacity | 65KA(240V~),25KA(415V~),14KA(440V~),10KA(DC125/250V) |
Electro-mechanical Endurance | 3000 cycles |
Connection Terminal | Pillar terminal with clamp |
Connection Capacity | |
Installation | Panel mounting |
Main Technical Parameters
Framework Current |
30 |
63 |
|||||
Type |
HWM1-30CW |
HWM1-63CW |
|||||
Rated current In(A) |
3,5,10,15,20,30 |
6,10,16,20,25,32,40,50,63 |
|||||
Poles number |
2 |
3 |
2 |
3 |
|||
Rated insulation voltage Ui(V) |
500 |
500 |
|||||
Rated short- circuit Breaking capacity (KA) |
IEC60947-2 (lcu/lcs) |
AC (50/60)Hz |
690V |
- |
- |
||
525V |
- |
- |
|||||
500V |
- |
2.5/1 |
|||||
440V |
- |
2.5/1 |
|||||
415V |
1.5/1.5 |
2.5/1 |
|||||
400V |
- |
5/2 |
|||||
380V |
1.5/1.5 |
5/2 |
|||||
230V |
2.5/2 |
7.5/4 |
|||||
DC |
250V |
- |
2.5/1 |
- |
|||
300V |
- |
- |
|||||
Isolation of adaptability |
● |
● |
|||||
Utilisation category |
A |
A |
|||||
Reverse connection(No mark terminals) |
● |
● |
|||||
Rated impulse withstand voltage Uimp(kV) |
4 |
6 |
|||||
Pollution feature |
2 |
2 |
