YUANKY CJ19 series changeover capacitor contactor 380V 100A AC contactor

Short Description:

Application

CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hz or 60Hz. rated working voltage up to 380V. It is used to put a low voltage parallel connected capacitor in operation or switch it off in a low voltage reactive power compensation device. The contactor is equipped with a surge suppressor, which can effectively reduce the surge current passing through the capacitor at switching on and suppress the over voltage at switching off. The product is in conformity with the standards IEC947-4-1.


Product Detail

Product Tags

Specifications

Electrical model

CJ19-25C

CJ19-32C

CJ19-43C

CJ19-63C

CJ19-95C

Rating current le (380V)A

100

100

29

100

100

Power of controlled

capacitor

220/230V

17

23

10

43

63

380/400V

6

9

20

15

22

Rating insulation voltage(V)

12

18

500

30

40

Rating operational voltage(V)

380

Restrained surge capacity

20le

Operation range

Pick-up: (85%~110%); Drop-out: (20%~75%)Us

Coil power(VA)

Start-up

70

110

110

200

200

Holding

8

11

11

20

20

Control capacity of auxiliary contact

AC-15  360VA; DC-13  33W

Weight(KG)

0.44

0.63

0.64

1.4

1.5

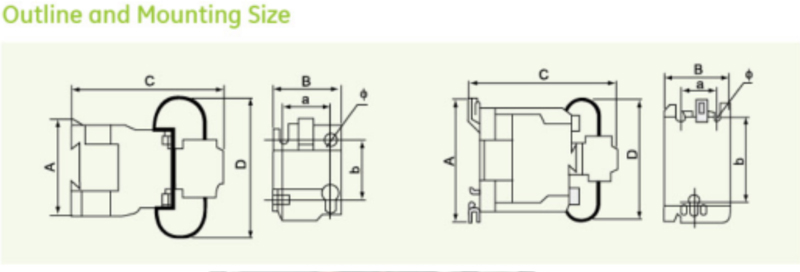

AC contactor-3

Type

Amax

Bmax

Cmax

Dmax

E

F

Note

CJ19-25C

80

47

124

76

34/35

50/60

Screw

Mount/35mm

CJ19-32C

90

58

134

86

40

48

CJ19-43C

90

58

136

86

40

48

CJ19-63C

132

79

150

CJ19-95C

135

87

158
