●High-impact resistant thermoplastic construction;
●Narrow back body leaves more room for wires in the box;
●Designer-style satin-finish rocker;
●Easy-access green hex head ground screw;
●Excellent performance with quiet paddle action;
●Accepts #12 and #14 AWG(Push-In wire #14 AWG only) ;
●Tri-drive ground, terminal and mounting screws;
●Auto ground copper clip assures positive ground.
●Standard plate/Screwless wallplate optional.
Following colors available
*custom colors are acceptable

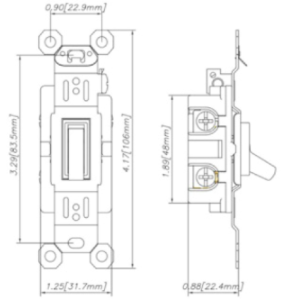

Dimensions
Decorator Switch Single Pole/3-ways Height 106.0±0.5mm Width 36.2±0.5mm Depth 31.2±0.5mm *Metal Bracket Thickness:1.2mm |
|
Toggle Switch Single Pole Height 106.0±0.5mm Width 22.6±0.5mm Depth 22.4±0.5mm *Metal Bracket Thickness:1.2mm |
|
Decorator Switch 3-ways Height 106.0±0.5mm Width 31.7±0.5mm Depth 22.4±0.5mm *Metal Bracket Thickness:1.2mm |
Types of Switches
Decorative/Toggle Switches
Photo |
Model |
Description |
Rating(A V) |
Wiring Type |
Function |
DS15 |
15A 120/277V AC Decorative Switch |
15A 120/277V |
Side Wire/ Push in Wire |
Self- Grounding |
|
DS15.3 |
15A 120/277V AC Decorative Switch 3-ways |
15A 120/277V |
Side Wire/ Push in Wire |
Self- Grounding |
|
|

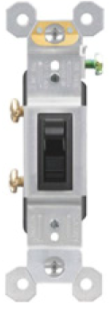

T15 |
15A 120V AC Single Pole Toggle Switch |
15A 120V |
Side Wire/ Push in Quick Wire |
Self- Grounding |
|

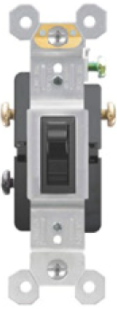

T15.3 |
15A 120V AC 3-ways Toggle Switch |
15A 120V |
Side Wire/ Push in Quick Wire |
Self- Grounding |
