YUANKY intelligent contactors 11A 40A 85A 225A 400A long life energy saving anti-shaking electric permanent magnet contactor

Short Description:

Intelligent anti-shaking electric permanent magnet contactor

AMC and AMCF series of intelligent type electric permanent magnet anti-shaking contactor uses permanent magnet type driving mechanism to replace the traditional electromagnetic driving mechanism and forms a new type of micro power contactor. In the low voltage power system, the traditional electromagnetic contactor is widely used, but is has the shortcomings of being noisy, high power consumption, heating emitted by the coil and core etc.. The intelligent anti-shaking permanent magnet contactor has successfully solved many shortcomings of the traditional electromagnetic AC contactor, and has been widely used in the power switching and circuit control. AM series products have the advantages of energy-saving, antishaking, long life, etc.; it does not only have excellent performance, but also has extensive use value.

AMC series intelligent permanent magnet contactor is mainly used for AC 50Hz, 60Hz, rated working voltage to rated voltage to 690V; in the power system, it is responsible for turning on and off the circuit for remote switch on and off the circuit, frequent start and control of the motor.


Product Detail

Product Tags

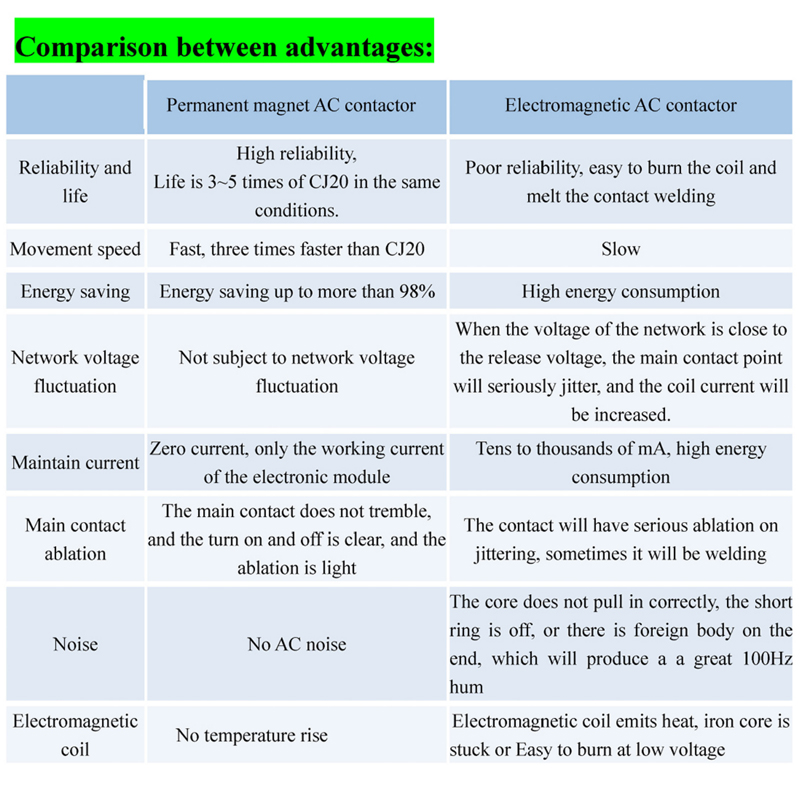

Advantages of the product

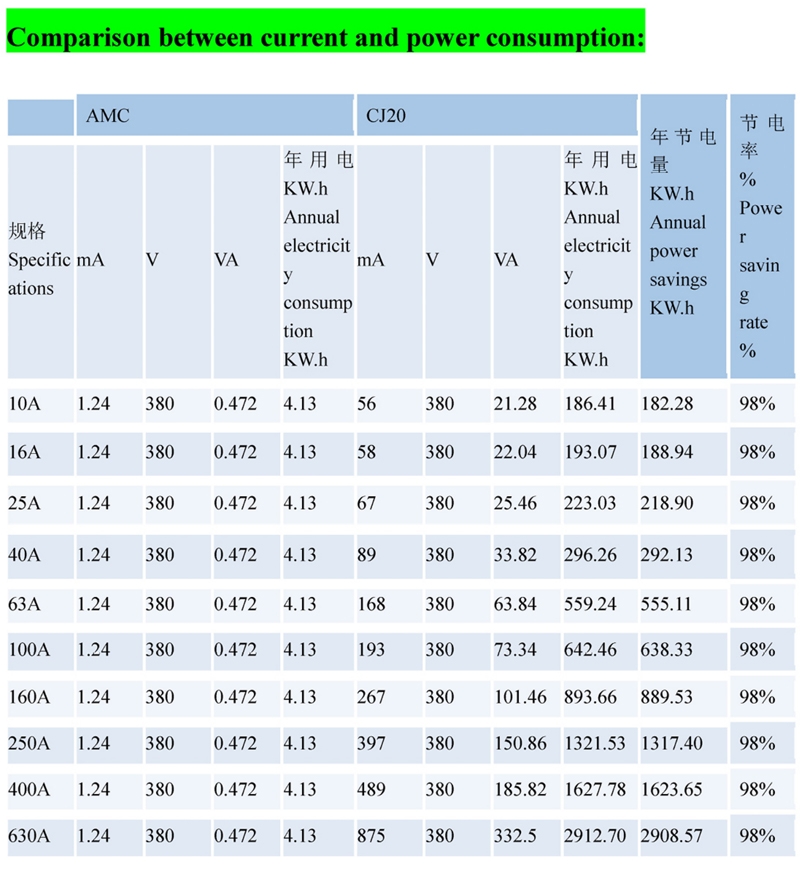

Energy-saving: compared to the traditional electromagnetic contactor, it can save 98% power consumption.

Long life: high reliability, its life is 3-5 times of the traditional contactor under the same conditions.

Anti electricity-shaking: no influence by voltage fluctuation.

Zero noise: the product has no vibration, no noise, no heat, and it is green and environmental protection product.

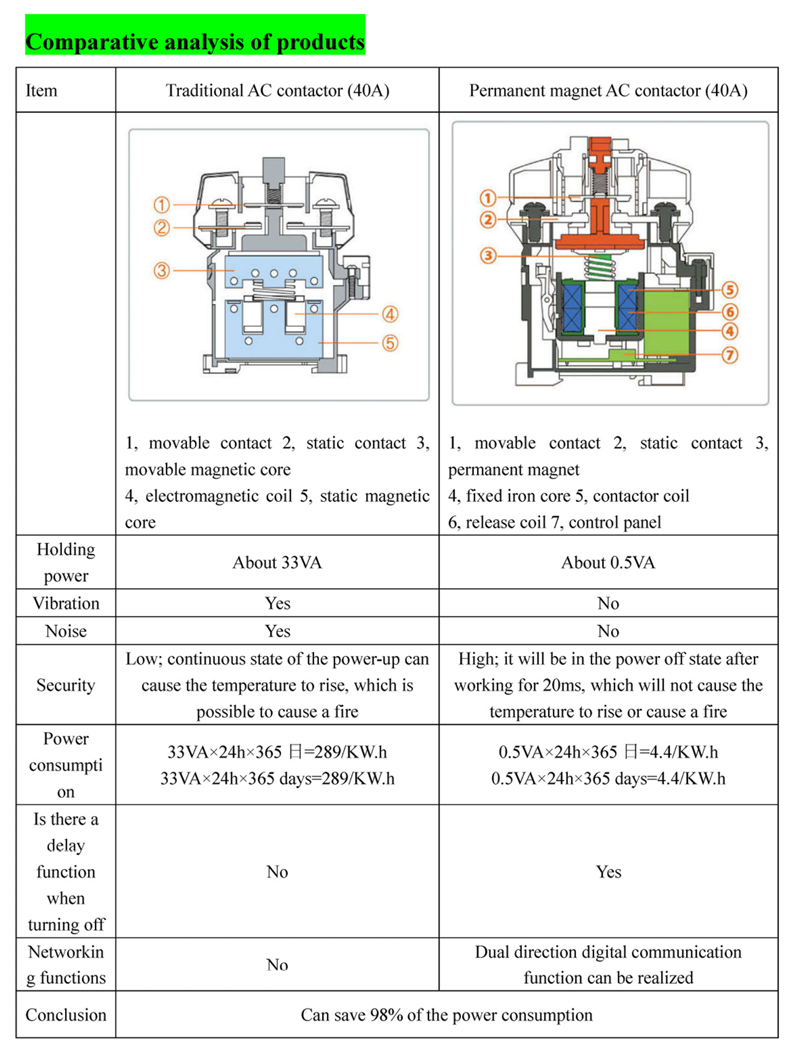

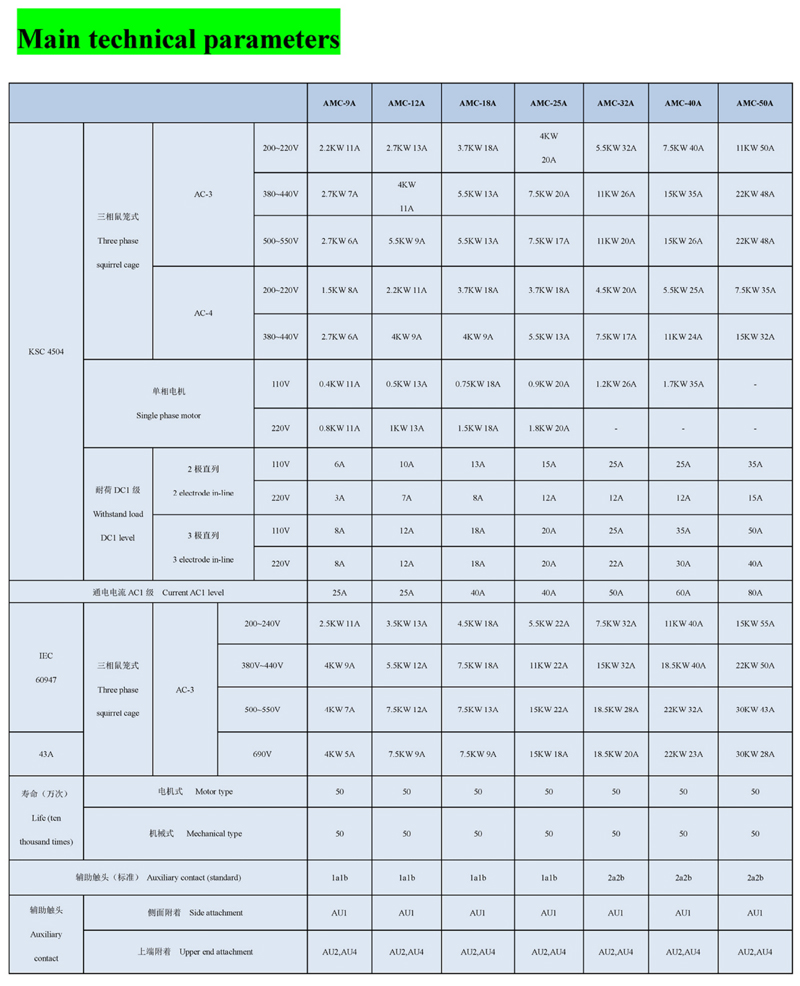

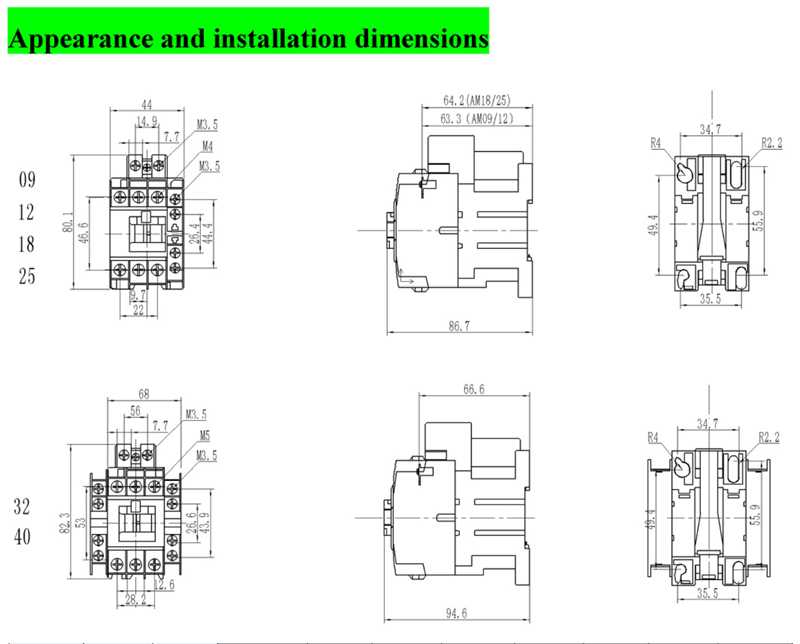

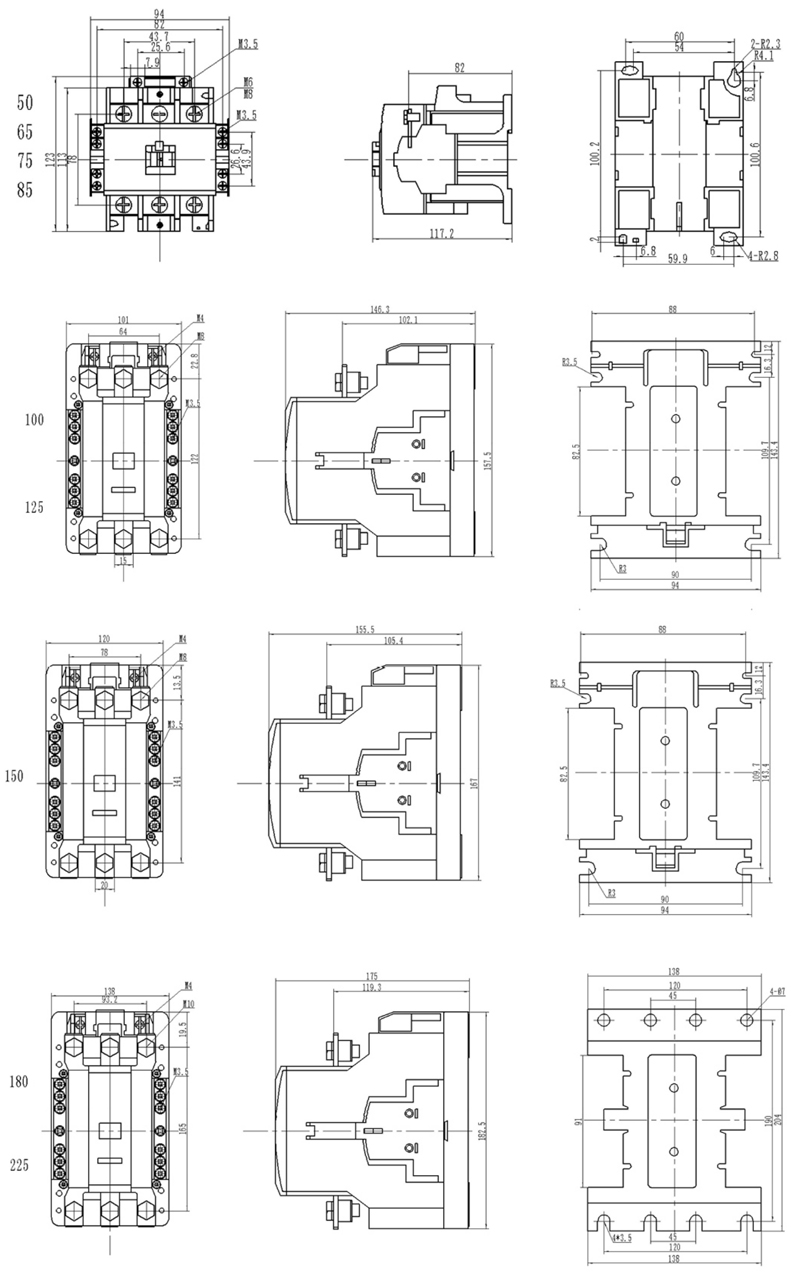

permanent magnet contact 1 permanent magnet contact 2 permanent magnet contact 3 permanent magnet contact 4 permanent magnet contact 5 permanent magnet contact 6

Ordering instructions

The following must be pointed out when an order is placed: product model name, coil operating voltage and frequency number.

For example: intelligent permanent magnet AC contactor AMC-25A 380V 50Hz 50 units;

Intelligent permanent magnet anti-shaking AC contactor AMCF-22A 380V 50Hz 50 units;

Notes: anti-shaking products need to indicate the delay time, and allow the voltage to drop to the minimum value (percentage);

If there is any other special requirements, please contact the manufacturer for custom-made.
