Specifications |
HW3110 |
Supply System Type |

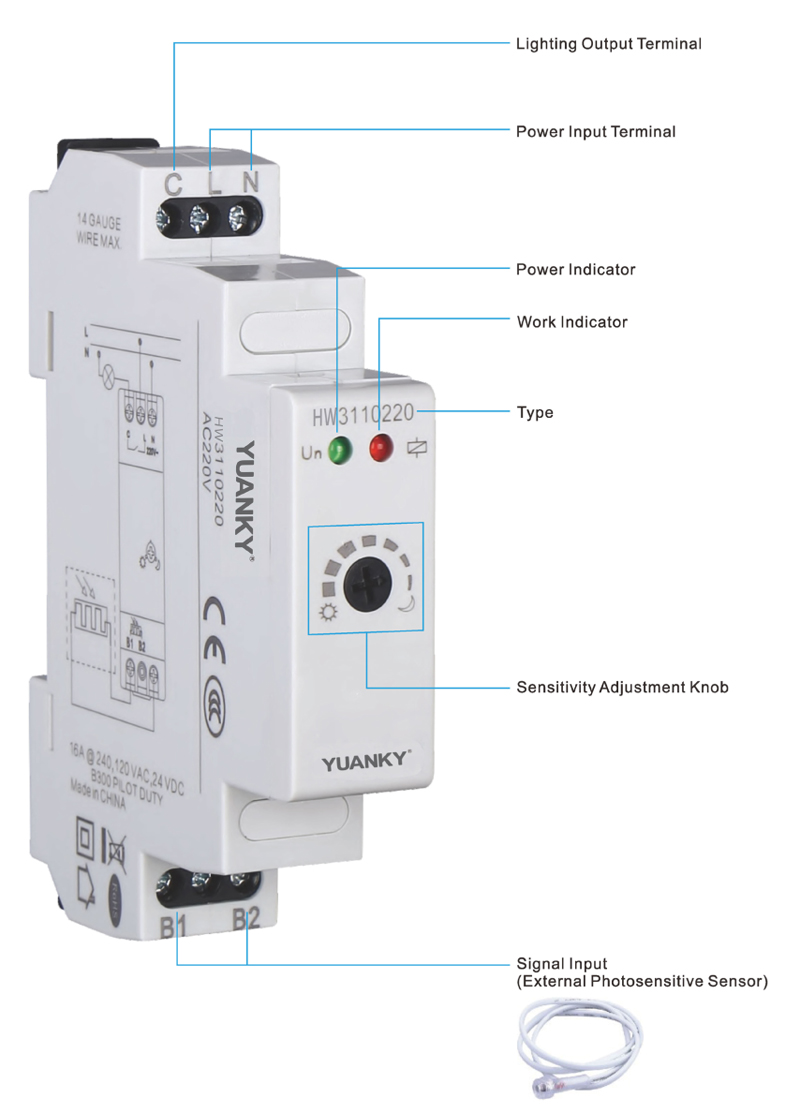

Light Activated Switch |
Power Indicator (Green LED) |
· |
Rated Current |
16A |
Work Indicator (Red LED) |
· |
Output Characteristics |
SPDT |
Working Voltage (AC12V or DC12V) |
- |
Working Voltage (AC24V or DC24V) |
- |
Working Voltage (AC110V) |
· |
Working Voltage (AC220V) |
· |
Working Voltage (AC/DC12V~240V) |
- |
Step Sequence |
- |
Technical Data |
HW3110 |
2300W | Incandescent Lamp 230V |
2300W | Halogen Lamp 230V |
2300VA | Fluorescent Tube |
8×40W(4.7μF)6×58W(7μF)
2×100W(18μF) |
Parallel Compensated Fluorescent Tube,Max. 400W(42μF) |
12×7W,8×11W,4×20W | Compact Fluorescent Lamp(CFL),Max.90W |
1000VA | Non-corrected Mercury Vapour Lamp |
400VA(42μF) | Parallel-corrected Mercury Vapour Lamp |
1000VA | Non-corrected Sodium Vapour Lamp |
400VA(42μF) | Parallel-corrected Sodium Vapour Lamp |
20W | LED Up to 2W |
55W | LED Between 2W and 8W |
Output Characteristics | SPDT |
Contact Load Output | 16A/250VAC |
Working Voltage | Single Voltage AC110V, AC220V |

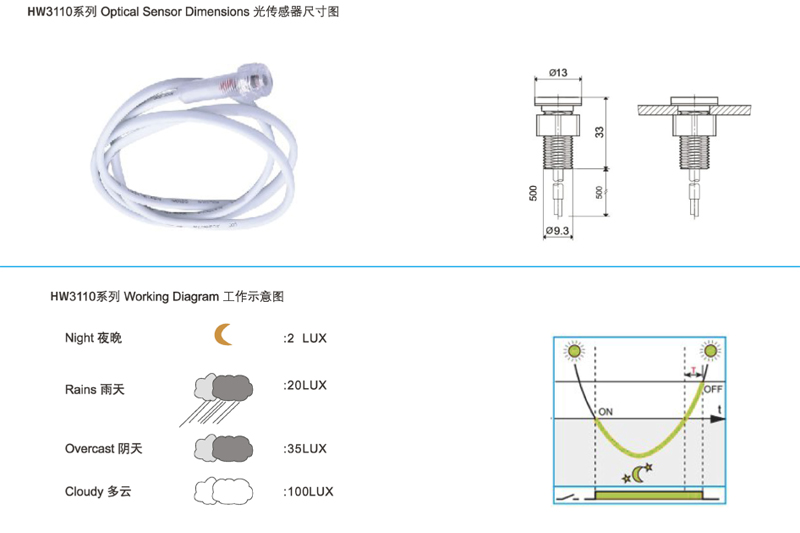

Dimensions | Wiring Diagram |
|
