YUANKY limited power supply 5V 12V 15V 24V 48V 90% efficiency switching power supply

Short Description:

Product Description

HW4 series is an economical and ultra-thin rail-type power supply that meets German industrial standards. It is suitable for installation on 35/7.5 or 35/15 rails. In order to save space, the body is designed to be 18mm (1SU) and 36mm (2SU) width. The entire series uses a full range of AC input from 85VAC to 264VAC (277VAC is also applicable), and all comply with the EN61000-3-2 standard on the harmonic current specifications specified by the European Union.

HW4 series is designed with a plastic shell, which can effectively prevent users from electrical hazards. The work efficiency is as high as 87%. Under air circulation, the entire series can work at an ambient temperature of -30 to 70 degrees. It has complete protection functions and complies with relevant certification standards for home automation and industrial control equipment (IEC62368-1, EN61558-2-16), making YX4 series a highly competitive home and industrial application Power solutions.

Remark

1. Unless otherwise specified, all specification parameters shall be measured at 230VAC input, rated load and ambient temperature of 25 degrees.

2. Ripple and noise measurement method: a 12mm2 twisted pair wire is used, and the terminals are connected in parallel with the capacitors of 0.1uf and 47uf, and the measurement is conducted at the bandwidth of 20MHz.

3. Accuracy: including setting error, linear adjustment rate and load adjustment rate.


Product Detail

Product Tags

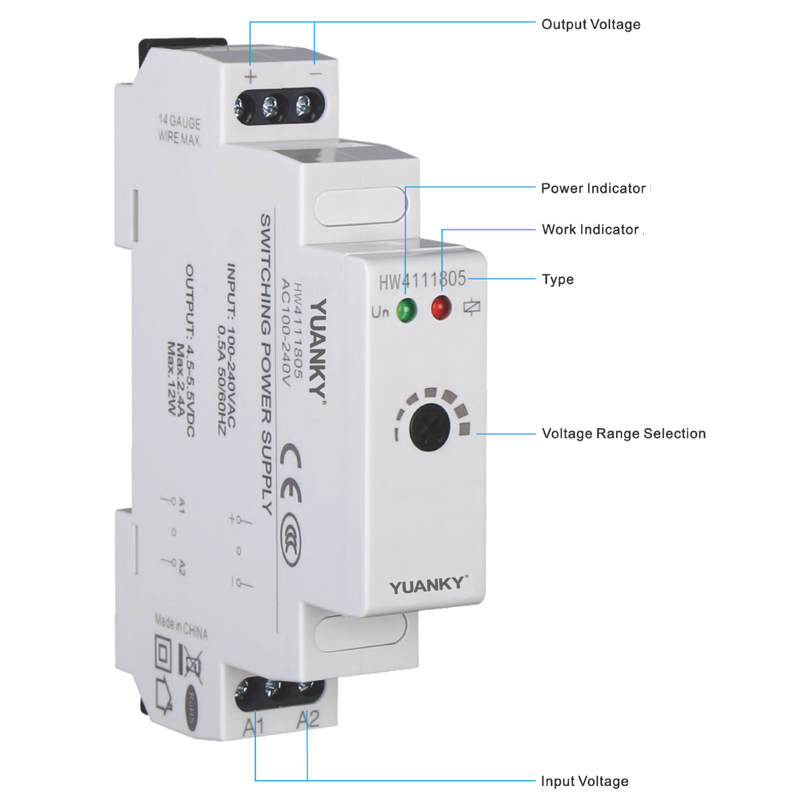

limited power supply-2

Product Characteristics

Ultra-thin design: width 18mm(1SU)/36mm(2SU)

International universal input: 85-264VAC (277VAC available)

No-load loss: <0.3W

Isolation level:

Pass LPS (Limited Power Supply)

Adjustable DC output voltage

Natural air cooling (working temperature:-30~ +70)

Can be installed on 35/7.5 or 35/15 Rail

Over voltage level:

LED indicates power on

Technical Data HW4111805 HW4111812 HW4111815 HW4111824 HW4111848

Output

DC Voltage

5V 12V 15V 24V 48V

Rated Current

2.4A 1.25A 1A 0.63A 0.32A

Rated Power

12W 15W 15W 15.2W 15.4W

Ripple and Noise(max)

80mVp-p 120mVp-p 120mVp-p 150mVp-p 240mVp-p

Voltage Adjustment Range

4.5-5.5V 10.8-13.8V 13.5-18V 21.6-29V 43.2-55.2V

Voltage Accuracy

±2.0% ±1.0% ±1.0% ±1.0% ±1.0%

Linear Adjustment Rate

±1.0% ±1.0% ±1.0% ±1.0% ±1.0%

Load Adjustment Rate

±1.0% ±1.0% ±1.0% ±1.0% ±1.0%

Start and Rise Time

2000ms, 80ms/230VAC            2000ms, 80ms/115VAC(Under Full Load)

Hold Time

300ms/230VAC                  12ms/115VAC(Under Full Load)

Input

Voltage Range

85-264VAC(277VAC Available)      120-370VDC(390VDC Available)

Frequency Range

47-63Hz

Efficiency

80% 85% 85.5% 86% 87%

Alternating Current

0.5A/115VAC                    0.25A/230VAC

Surge Current

Cold Start   25A/115VAC         45A/230VAC

Protection

Overload

110-145% of rated output power
When the output voltage is less than 50%, it is in hiccup mode, and it can automatically recover after the abnormal load condition is removed.When the output voltage is 50%~100%, it is in constant current mode, and it can automatically recover after the abnormal load condition is removed.

Over voltage

5.75-6.75V 14.2-16.2V 18.8-22.5V 30-36V 56.5-64.8V
Protection Mode: Turn off the output, clamp by the diode
Dimensions: in (mm) Wiring Diagrams









Technical Data HW4113605 HW4113612 HW4113615 HW4113624 HW4113648

Output

DC Voltage

5V 12V 15V 24V 48V

Rated Current

3A 2A 2A 1.5A 0.75A

Rated Power

15W 24W 30W 36W 36W

Ripple and Noise(max)

80mVp-p 120mVp-p 120mVp-p 150mVp-p 240mVp-p

Voltage Adjustment Range

4.5-5.5V 10.8-13.8V 13.5-18V 21.6-29V 43.2-55.2V

Voltage Accuracy

±2.0% ±1.0% ±1.0% ±1.0% ±1.0%

Linear Adjustment Rate

±1.0% ±1.0% ±1.0% ±1.0% ±1.0%

Load Adjustment Rate

±1.0% ±1.0% ±1.0% ±1.0% ±1.0%

Start and Rise Time

2000ms, 80ms/230VAC            2000ms, 80ms/115VAC(Under Full Load)

Hold Time

300ms/230VAC                  12ms/115VAC(Under Full Load)

Input

Voltage Range

85-264VAC(277VAC Available)      120-370VDC(390VDC Available)

Frequency Range

47-63Hz

Efficiency

82% 88% 89% 89% 90%

Alternating Current

0.5A/115VAC                    0.25A/230VAC

Surge Current

Cold Start   25A/115VAC         45A/230VAC

Protection

Overload

110-145% of rated output power
When the output voltage is less than 50%, it is in hiccup mode, and it can automatically recover after the abnormal load condition is removed.When the output voltage is 50%~100%, it is in constant current mode, and it can automatically recover after the abnormal load condition is removed.

Over voltage

5.75-7.5V 15-18V 18.8-22.5V 30-36V 56.5-64.8V
Protection Mode: Turn off the output, clamp by the diode
Dimensions: in (mm) Wiring Diagrams
