Circuit breaker new arrival SF6 load breaker switch series 12kv 24kv 36kv load circuit breaker

Short Description:


Product Detail

Product Tags

Summary:

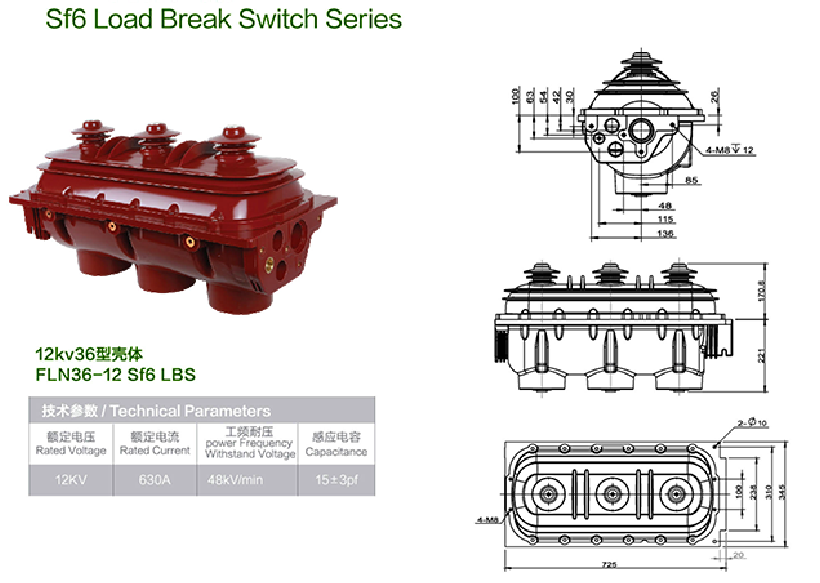

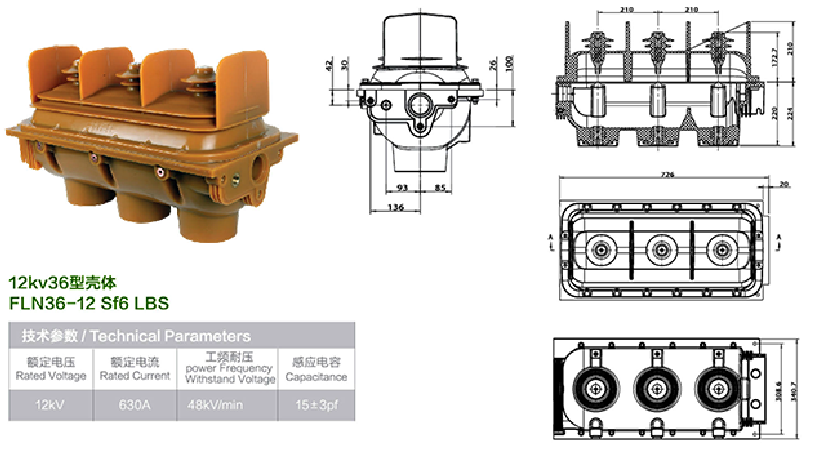

FLN36-12kv load break switch use SF6 gas as arc extinguishing and insulating medium.There are three working positions:open, closed, earth position in the switch. It has small volume, installing easy-to-easy, strong environment adaptability and other characteristics.

Ambient condition:

1.

Ambient temperature:-40°C ~+40°C

2.

Relative humidity:Daily average ≤ 95%

Monthly average ≤ 90%

3.

Altitude: ≤ 2000 specification m

4.

Earthquake intensity:≤ 8 degree

5.

No corrosive gas,no combustible gas,no steam and shake.

*

Annual leakage rate ≤ 0.1%

*

Special conditions:When the altitude > 2000m,please indicate in order to adjust the designing scheme.
