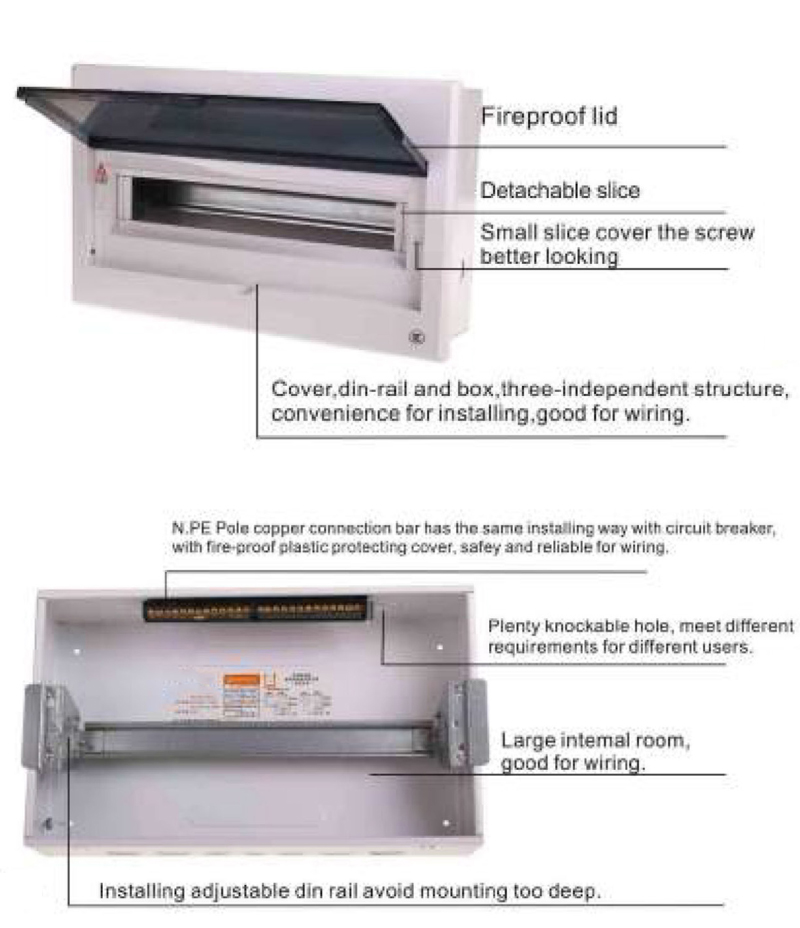

MXB series fashion distribution box(Iron base box, PC cover)
Model (way) |
Row of box |
Surface mounted dimension(mm) |
Flush mounted dimension(mm) |
Basebox material |
Cover material |
Package/ Ctn(Pcs) |
Cbm/ Ctn |
Gross Weight /Ctn(Kgs) |
MXB45-10 |
Single row |
270×230×90 |
246×210×90 |
1.0mm iron |
PC |
10 |
0.081 |
20.8 |
MXB45-12 |
Single row |
306×230×90 |
282×210×90 |
1.0mm iron |
PC |
10 |
0.090 |
23 |
MXB45-15 |
Single row |
360×250×90 |
336×230×90 |
1.0mm iron |
PC |
10 |
0.111 |
25 |
MXB45-18 |
Single row |
414×250×90 |
390×230×90 |
1.0mm iron |
PC |
10 |
0.127 |
29 |
MXB45-21 |
Single row |
468×250×90 |
444×230×90 |
1.0mm iron |
PC |
5 |
0.073 |
19 |
MXB45-24 |
Double rows |
306×461×90 |
282×481×100 |
1.0mm iron |
PC |
5 |
0.080 |
21 |
MXB45-30 |
Double rows |
360×501×90 |
336×481×100 |
1.0mm iron |
PC |
5 |
0.120 |
23.5 |
MXB45-36 |
Double rows |
414×501×90 |
390×481×100 |
1.0mm iron |
PC |
5 |
0.200 |
26 |
MXB45-42 |
Double rows |
468×501×90 |
444×481×100 |
1.0mm iron |
PC |
5 |
0.260 |
28 |
MXB45-45 |
Three rows |
360×752×100 |
336×732×100 |
1.0mm iron |
PC |
1 |
0.040 |
10.2 |
MXB45-54 |
Three rows |
414×752×100 |
390×732×100 |
1.0mm iron |
PC |
1 |
0.050 |
10.6 |
MXB45-63 |
Three rows |
468×752×100 |
444×732×100 |
1.0mm iron |
PC |
1 |
0.060 |
10.8 |
MXB45-72 |
Four rows |
414×1003×100 |
390×976×100 |
1.0mm iron |
PC |
1 |
0.068 |
11.2 |
Cover color: Transparent blue or white
