Feature |
JQX-59F |
JQX-62F-1Z(80A) |
JQX-62F-2Z |
|
40A-80A contact change over capacity Installation and use of screw With opening and dustproof type |
|
|
||
Contact Ratings |
||||
Contact Ratings |
1A,2A |
1Z,1H,1D |
1Z,1H,1D |
|
Contact Resistance |
50mΩ(1A 6VDC) |
50mΩ(1A 6VDC) |
50mΩ(1A 6VDC) |
|
Contact Capacity |
80A/30VDC 250VAC |
80A/30VDC 250VAC |
120A/30VDC 250VAC |
|
Specification |
||||
Insulation Resistance |
500M (500VDC) |
1000M(500VDC) |
1000M(500VDC) |
|
Dieletric Strength |
BCC 1500VAC 1min |
BCC 2500VAC 1min |
BCC 1500VAC 1min |
|
BCC 1000VAC 1min |
BCC 1200VAC 1min |
BCC 1000VAC 1min |
||
Operate Time |
25ms/15ms |
25ms/25ms |
25ms/25ms |
|
Technical Parameter |
||||
Coil |
Rated Voltage |
DC6-220V AC6-380V |
DC6-220V AC6-380V |
DC6-220V AC6-380V |
Rated Power |
DC 3.5W AC 4.5VA |
DC 3W AC 5VA |
DC 3W AC 3VA |
|
Electrical Life |
105OPS |
105OPS |
105OPS |
|
Mechanical Life |
107OPS |
107OPS |
107OPS |
|
Operating Temperature |
-40~55 |
-40~40 |
-40~40 |
|
Weight |
233g |
210g |
340g |
|
Mounting Methods |
Screw Mounting |
Screw Mounting |
Screw Mounting |
|

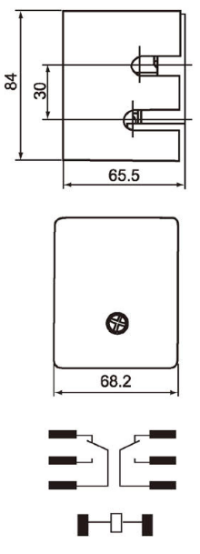

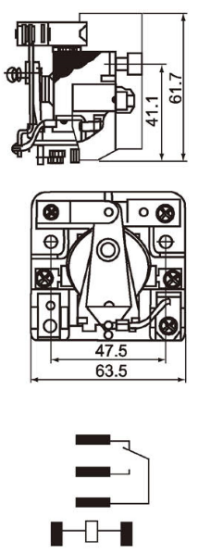

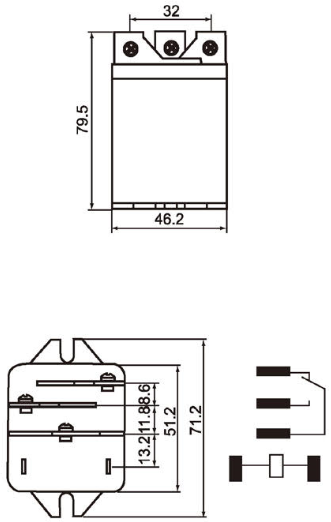

Dimension, Bottom View |
|
|
