YUANKY relay Automobile and new energy 35A dust cover type NO/NC 12VDC 24VDC parallel resistance relay

Short Description:

MAA relay

Automobile and new energy

35A contact switching capability

Operating temperature up to 125

Has a set of normally open, a set of changeover contact form

Dust cover and plastic package are available

Dimensions: 23x 15.5x 25mm


Product Detail

Product Tags

MAA

S

1

12

C

R

Product number

Product structure

Number of contact groups

Coil voltage

Contact form

Coil parallel element

S: plastic type

None: dust cover type

1: 1 group

12: 12VDC

24: 24VDC

A: normally open NO

C: switching NO/NC

None: no parallel original

R: parallel resistance

D1: parallel diode(anode connection #86)

D2: parallel diode(anode connection #85)



Contact parameters

Performance parameters

Contact form

1A ,1C

Insulation resistance

100MΩ (500VDC)

Contact form

silver alloy

Dielectric withstand voltage

Between contacts and coils: 500VAC 1min

Contact drop (initial)

NO: typical 15mV, maximum 300mV

Between disconnected contacts: 500VAC 1min

NO: typical 25mV, maximum 300mV

Action time

10ms

Maximum continuous current

NO: 35A

Release time

10ms

NC: 20A

Ambient temperature

-40~+125

Maximum switching voltage

40VDC

Vibration

10Hz~500Hz 49m/s2 (5G)

Electrical life

See appendix 1

Shock

196m/s2 (20G)

Mechanical life

1000000

Lead-out method

Quick-connect lead-out

Package type

Plastic package type, dust cover type

Weight

About: 22g

Mechanical properties

Housing retention: (tension and compression)200N

Pin holding force: (tension and compression)100N

Pin bending resistance: (all direction)10N

Coil Spec Sheet (23)

Rated voltage

VDC

Operating voltage

VDC

Release voltage

VDC

Coil resistance

Ω±10%

Coil power

W

Parallel resistance

Ω±10%

Equivalent resistance

Ω±10%

Maximum allowable coil voltage

VDC

20

85

12

8.4

1.2

90

1.6

-

-

20

15

12

8.4

1.2

90

1.8

680

79.5

20

15

24

16.8

2.4

360

1.6

-

-

40

30

24

16.8

2.4

360

1.8

2700

317.6

40

30

Appendix 1

Load voltage

Load type

Load current A

On-off ratio

Electrical durability

(tines)

Test ambient

temperature

1C

1A

On

Off

NO

NC

NO

14VDC

Resistive

on

35

20

35

2

2

100000

For details, please refer to the environmental

temperature curve of the electrical durability test.

off

35

20

35

2

2

100000

Sensibility

on

40

20

40

2

2

100000

off

20

10

20

2

2

100000

Lamp

on

100

-

100

2

2

100000

off

20

-

20

2

2

100000

27VDC

Resistive

on

20

10

20

2

2

100000

off

20

10

20

2

2

100000

Sensibility

on

38

28

38

2

2

100000

off

15

6

15

2

2

100000

Lamp

on

70

-

70

2

2

100000

off

7

-

7

2

2

100000

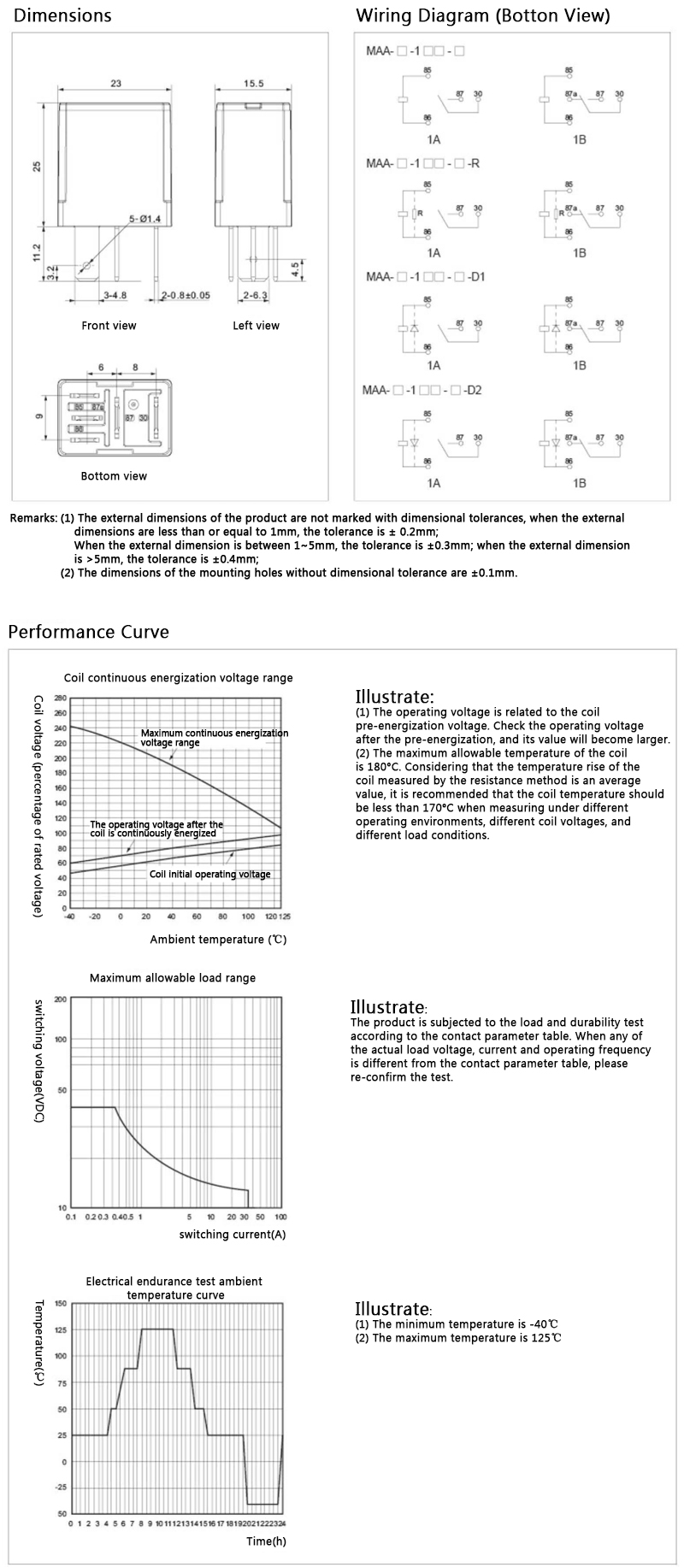

relay-1
