YUANKY relays 31A contact switching capability Silver alloy relay for inverters used in solar photovoltaic power generation

Short Description:

ME100 Relay

Power/5G/Inverter

31A contact switching capability

Inverter for solar photovoltaic power generation

Contact gap: 1.5mm (in line with EU photovoltaic standard VDA0126)

1.8mm (complies with IEC62109-2-2011)

The whole machine reduces the coil storage voltage and saves power consumption

Dimensions: 30.4*15.9*23.3mm (pin length 3.5)


Product Detail

Product Tags

ME100

S

1

A

X

F

Product number

Product structure

Number of contact groups

Contact form

Contact gap

Insulation class

S: Plastic encapsulated type

1A: 1 group

A: Normally open NO

None: 1.8mm

X: 1.5mm

Y: 2mm

Z: 2.3mm

F: class F



Contact parameters

Performance parameters

Contact form

1A

Insulation resistance

1000MΩ (500VDC)

Contact material

Silver alloy

Medium pressure

Between contact and coil: 4500VAC 1min

Between open contacts: 2500VAC 1min

Contact resistance(initial)

100mΩ (1A6VDC)

Action time

20ms

Maximum switching current

31A

Release time

10ms

Maximum switching voltage

277VAC

Ambient temperature

-40~+85

Maximum switching power

7750VA

vibration

10Hz~55Hz 1.5mm double amplitude(DA)

Electrical life

30000 times

impact

Stability: 196m/s2 (20G)

Strength: 980m/s2 (100G)

Mechanical life

1000000 times

Terminal mode

Printed board

Package form

Plastic type

Weight

About 21g



Coil Spec Sheet (23)

Rated voltage

VDC

Operating voltage

VDC

Release voltage

VDC

Max allowable voltage

VDC

Coil resistance

Ω±10%

Coil power consumption

W

9

6.3

0.9

10.8

58

About 1.4

12

8.4

1.2

14.4

103

18

12.6

1.8

21.6

230

24

16.8

2.4

28.8

410

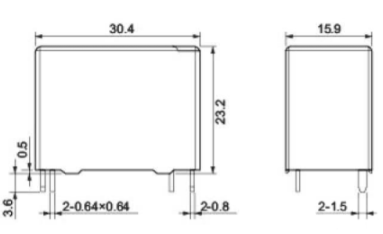

Dimensions

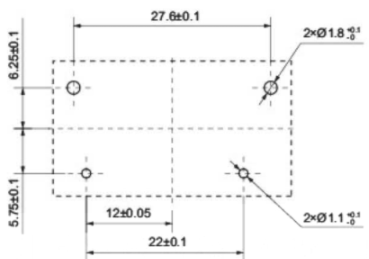

Mounting hole size



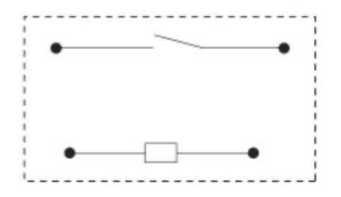

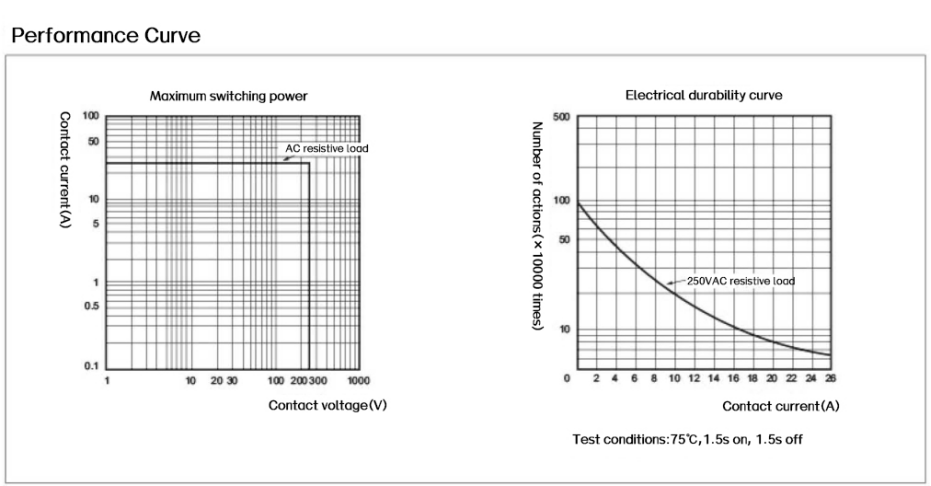

Remark:

(1) The external dimension of the product is not marked with dimensional tolerance. When the external dimension is less than or equal to 1mm, the tolerance is ±0.2mm; when the external dimension is between 1~5mm, the tolerance is ±0.3mm; when the external dimension is > 5mm, the tolerance is ±0.4mm;

(2) The dimensions of the mounting holes without dimensional tolerance are ±0.1mm.
