YUANKY staircase light time switch 220V one knob 2 knobs SPDT DPDT lighting rotary toggle timer switch

Short Description:

Specifications

HW3210

HW3220

HW3211

HW3221

Supply System Type

Staircase Light Time Switch

Staircase Light Time Switch

Staircase Light Time Switch

Staircase Light Time Switch

Power Indicator (Green LED)

·

·

·

·

Rated Current

5A/16A

5A/16A

5A/16A

5A/16A

Work Indicator (Red LED)

·

·

·

·

Output Characteristics

SPDT

DPDT

SPDT

DPDT

Working Voltage(AC12V or DC12V)

-

-

-

-

Working Voltage(AC24V or DC24V)

-

-

-

-

Working Voltage(AC110V)

·

·

·

·

Working Voltage(AC220V)

·

·

·

·

Working Voltage(AC/DC12V~240V)

-

-

-

-

Step Sequence

-

-

-

-


Product Detail

Product Tags

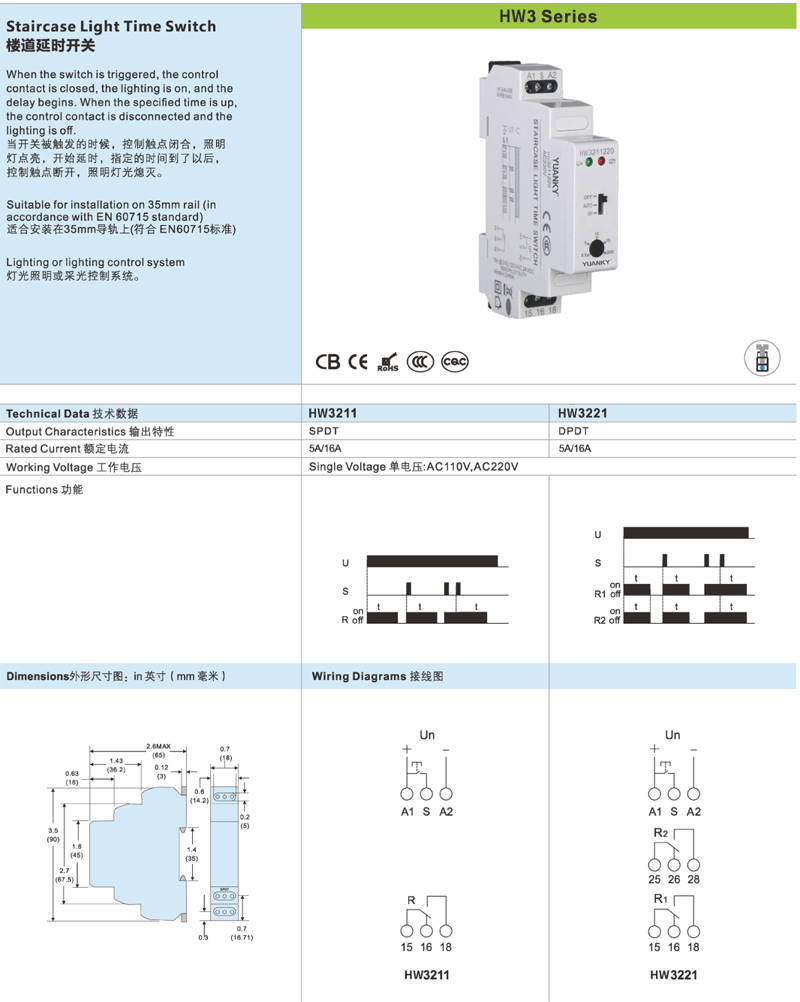

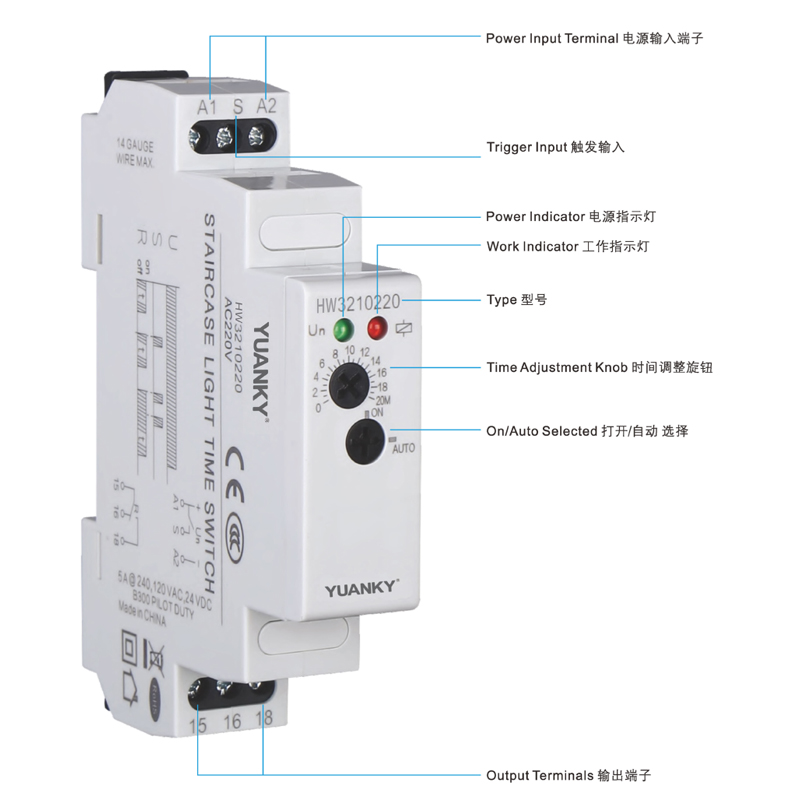

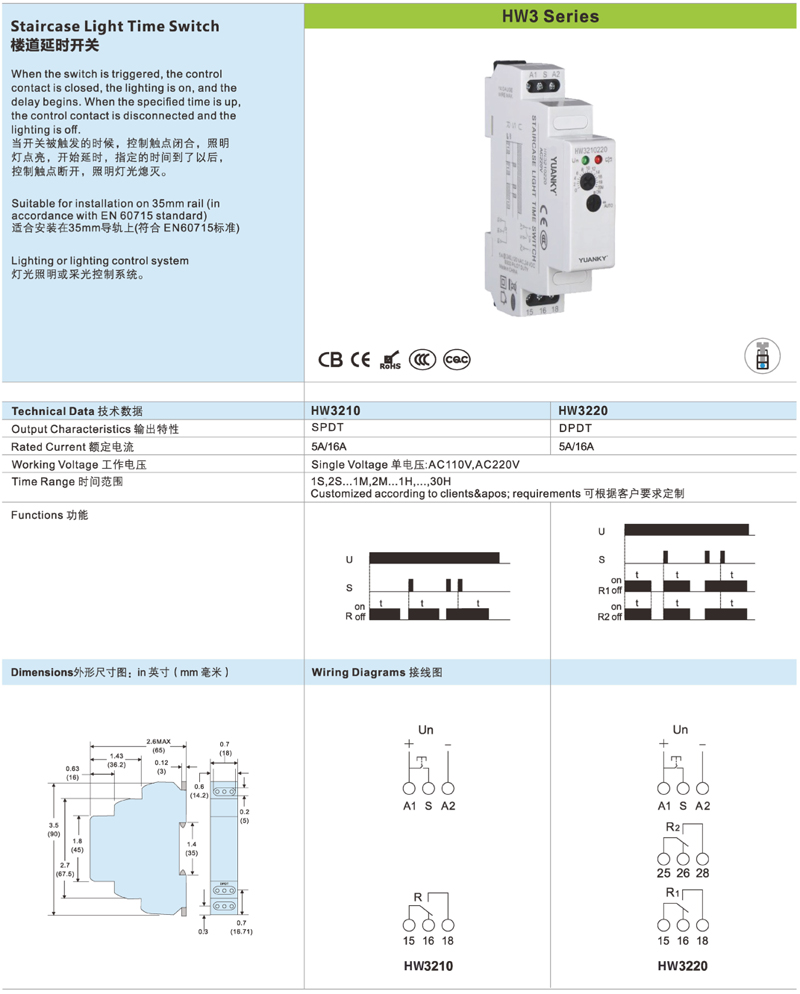

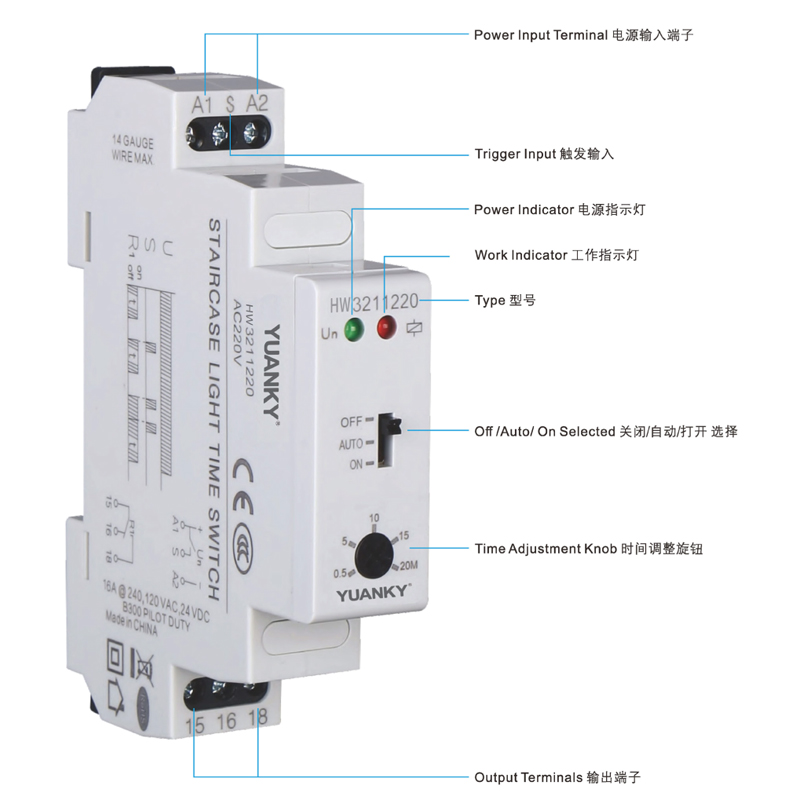

Staircase Light Time Switch

When the switch is triggered, the control contact is closed, the lighting is on, and the delay begins. When the specified time is up, the control contact is disconnected and the lighting is off.

Suitable for installation on 35mm rail (in accordance with EN 607 15 standard)

Lighting or lighting control system

light control relay staircase light timer-1 staircase light timer-2 staircase light timer-3 staircase light timer-4 staircase light timer-5
