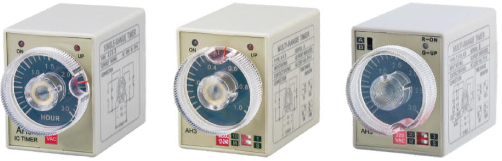

YUANKY time relay AC220V 10A variable SPDT DPDT 0.01S 990H timer relay

Short Description:

Feature

AH3/CH3 series of electric time relays have small size, light weight, high delay accuracy, wide time range, good reliability, long life characteristics etc. The items complied with international standard are suitable for kinds of high precision and reliability auto control situation to delay control.

Send email to us Download as PDF

Product Detail

Product Tags


Technical Parameter	Multi Range Variable	Variable			Multi Range Variable
Repeat Accuracy	1%	<0.5%+20ms			<0.5%+20ms
Contact Rating	AC220V 10A	AC220V 10A			AC220V 10A
Rated Voltage	VAC:12-24-110-220-380 VDC:12-24	VAC:12-24-110-220-380 VDC:12-24 VAC/DC 12-240			VAC:12-24-110-220-380 VDC:12-24 VAC/DC 12-240
Output Contact	Mode A DPDT Mode B SPDT	SPDT	DPDT	One Inst. One Delay Output	Mode A/B
Type	CH3-AB	AH3-1	AH3-2	AH3-3	AH3-A/B/C/D/E/AB-A/AB-B
Time Range	0.01S-990H	SEC:1/3/6/10/12/30/60 MIN:3/6/10/12/30/60 HR:3/6/10/12/30			A:1S/10S/1M/10M B:3S/30S/3M/30M C:6S/60S/6M/60M D:1M/10M/1H/10H E:3M/30M/3H/30H

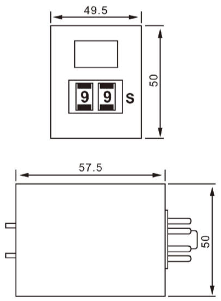

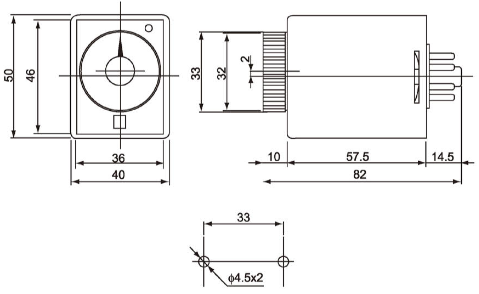

Dimensions

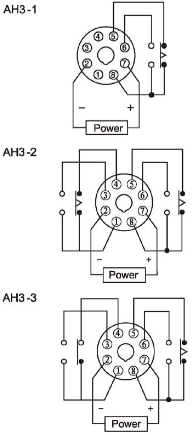

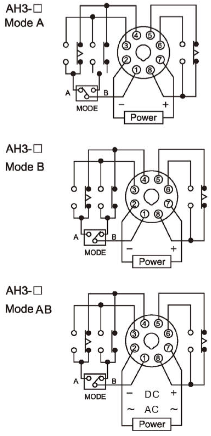

Connection Diagram
