YUANKY time switch manufacture CE CB certification 230V 16A din rail electronic time delay switches

Short Description:

Application

The time switch, applicable to circuit with rated voltage 230V AC and rated current 16A,
“opens” after a predetermined time from actuation.
Construction and Feature
Suitable to control wide range lightings include incandescent lamp, halogen lamp and fluorescent lamp

Simple time setting
With time delay
Extremely compact and modular size


Product Detail

Product Tags

Technical Data

■Rated voltage: 230V~

■Rated frequency: 50Hz

■Consumption: 1VA

■Contact capacity: 16A 250V AC (COS φ =1)

■Electrical endurance: 100000 cycles

■Mechanical endurance: 10000000 cycles

■Ambient temperature: -20℃ ~+50℃

■Connection terminal: pillar terminal with clamp

■Installation:

On symmetrical DIN rail

Panel mounting

HWC18-M time switch

■Type: electromechanical type with time delay

■Time setting range: 7 minutes

■Min. setting interval: 30 seconds

■Toggle switch: manual/automatic

■Controlled lighting load:

Incandescent lamp: 2300W

Halogen lamp: 2300W

■Fluorescent lamp:

Uncompensated 2300W

Compensated in series: 2300W

Compensated in parallel: 1300W

■Switching: reset after 30s

HWC18-D time switch

■Type: electronic time delay

■Time setting range: 20minutes

■Min. setting interval: 5minutes

■Slide switch: manual/automatic

■Controlled lighting load:

Incandescent lamp: 2300W

Halogen lamp: 2300W

0 Fluorescent lamp load with electronic ballast: 800W

■Switching: immediate reset

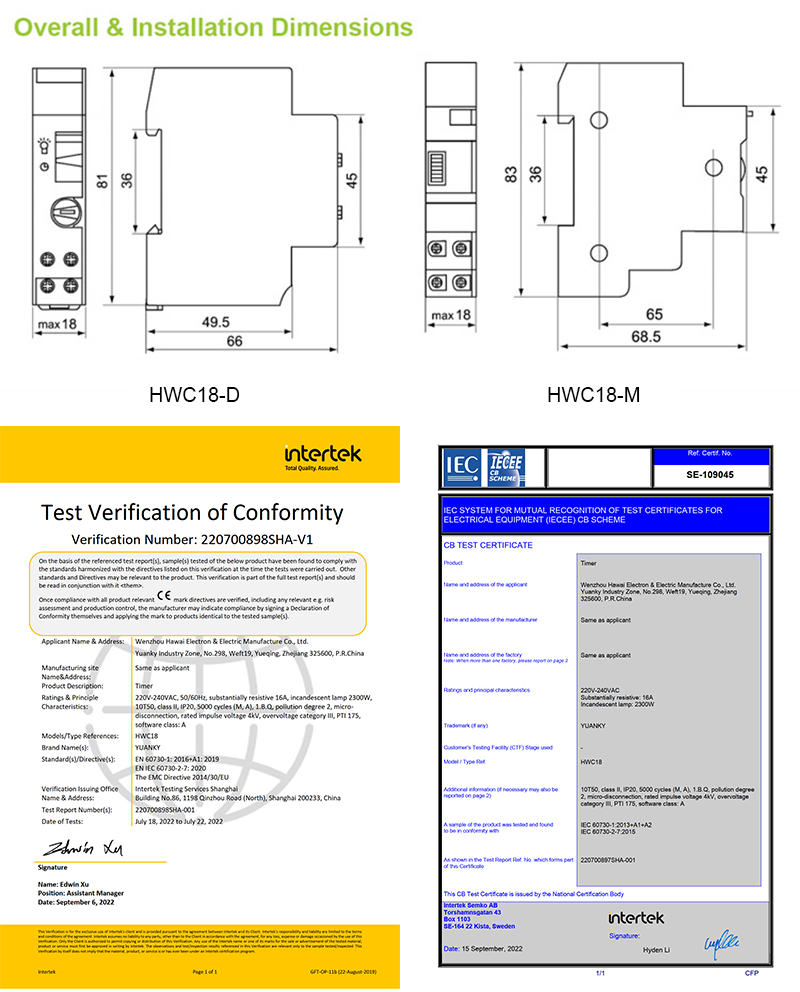

HWC18
